Trends Sci. 2025; 22(10): 10613

Periodontal diseases are common and ongoing conditions that cause damage to both the hard and soft tissues of the periodontium through a combination of microbial dysbiosis and human immunological responses [1-3]. According to the 2017 Thai National Oral Health Survey, 81.00% of working-age adults aged 35 - 44 years had gingivitis, and 32.60% had periodontitis with periodontal pocket. Additionally, 83.90% had experience in tooth loss, which is the major oral health problem among this age group [4]. Measuring radiographic and clinical periodontal parameters constitutes a thorough evaluation of periodontal disorders. Conducting a comprehensive periodontal examination on a large population necessitates the presence of highly qualified practitioners and accurate diagnostic devices, both of which consume significant time and resources.

Human saliva contains several biomarkers that may have diagnostic significance in identifying the person with periodontal diseases resulting in a useful screening tool. The advantages of saliva are that the collection process is minimally invasive, it offers many sample possibilities, and it provides simple access, enabling collection by non-specialist dental personnel [5,6]. Several studies have explored possible biomolecules for the detection of periodontal diseases, including antibodies, periodontal bacteria, inflammatory cytokines, proteins, and other degradation products.

It is widely recognized that gram-negative bacteria produce sulfur-related compounds as metabolic byproducts. One of the most common sulfur compounds is H₂S, which is made when bacteria break down sulfur-containing amino acids like cysteine and homocysteine. The periodontal bacteria that can produce H₂S are Fusobacterium nucleatum, Treponema denticola, Prevotella tannerae, Porphyromonas gingivalis, Prevotella intermedia, and Aggregatibacter actinomycetemcomitans [7,8]. Each bacterium exhibits a different capacity for H₂S production. Several clinical studies have reported that sulfide byproducts are associated with periodontal diseases [9-13]. Patients with a high sulfide level are at a higher risk for further periodontal diseases progression [14,15]. Oral H₂S can be found in supra- and subgingival plaque, gingival crevicular fluids (GCF), and saliva [16,17].

Total amines or polyamines, such as cadaverine, putrescine, spermine, and spermidine, are associated with inflammatory processes, cellular proliferation, tissue regeneration, and bone formation, all of which are influenced by periodontal diseases. Bacteria include Fusobacterium spp., Prevotella spp., and Porphyromonas spp., which degrade host amino acids and produce polyamines that enhance metabolism, communication, virulence, and antibiotic resistance [18-21]. Previous research has shown that salivary total amines are associated with periodontal inflammatory status and can serve as a crucial biomarker for the extent of periodontal inflammation [22,23].

Oral biomarkers, H₂S and total amines, can be identified through various methods, including organoleptic test, gas chromatography (GC), sulfide level monitoring devices, high-performance liquid chromatography (HPLC), and several chemical methods [21,24,25]. Researchers develop the possibility of simple and rapid detection of periodontal diseases. Previous studies have shown that smartphone digital image colorimetry provides a complementary, modified analytical method for the determination of biomolecules [26-28].

The bismuth method is a semi-quantitative colorimetric method used for sulfide detection. The bismuth ion was combined with the sulfide ion and produced bismuth sulfide, a brown to black precipitation. The previous study revealed that the bismuth method can visually detect subgingival H₂S produced by periodontopathogens [8,29]. The ninhydrin method is one of the colorimetric methods for amine and amino acid quantitative analysis. An amino acid reacts with ninhydrin to produce Ruhemannʼs purple, a dark purple compound. Ninhydrin was utilized to detect salivary amine compounds as compared to other halitosis detection methods. The study revealed a significant correlation between salivary amine levels and VSC levels and organoleptic scores [30]. However, no studies have been performed on both methods for salivary H₂S and total amines in screening analysis, the rapid collection of semi-quantitative information about all the components of a sample [31]. Therefore, this study developed these methods for detecting salivary H₂S and total amines utilizing smartphone digital image colorimetry for practical application in saliva analysis. This study aims to evaluate the performance and validity of the modified bismuth and ninhydrin methods, and their applicability was also tested using human saliva.

Materials and methods

The recent study was approved by the Human Research Ethics Committee of the Faculty of Dentistry, Prince of Songkla University, Thailand (EC6411 - 074).

Reagents and chemicals

The sulfide standard (NaHS) and amine standard (putrescine) were purchased from Sigma Aldrich (Bornem, Belgium). The bismuth chloride (BiCl₃) was purchased from Himedia Laboratories (Himedia, India). All other chemical reagents were prepared with analytical-reagent-grade chemicals and deionized water.

Modified bismuth method

The bismuth method established by Basic et al. [7,8] has been modified for visual detection. The freshly prepared bismuth solution consisted of 0.4 M Triethanolamine HCl (pH 8.0), 10 mM Bismuth (III) chloride, 20 µM Pyridoxal 5 - phosphate monohydrate, 20 mM EDTA and 40 mM L-cysteine. The different concentrations of NaHS were mixed with the freshly prepared bismuth solution. The black precipitation of bismuth sulfide at the bottom of the microcentrifuge tube was visually observed within 30 min after sample addition [29].

The performance of the modified bismuth method was determined using the visual detection limit (LOD) and the detection box was used to control the light and position of the photograph of each reaction tube (Figure 1). A stability test was conducted to determine the optimal storage time for the bismuth solution. A ready-to-use bismuth solution would be prepared and stored at 4 °C, and it would be analyzed using standard 20 ppm NaHS (daily prepared) for 7 days. The long-term stability would be evaluated every week for 12 weeks to determine the optimal maximum storage time.

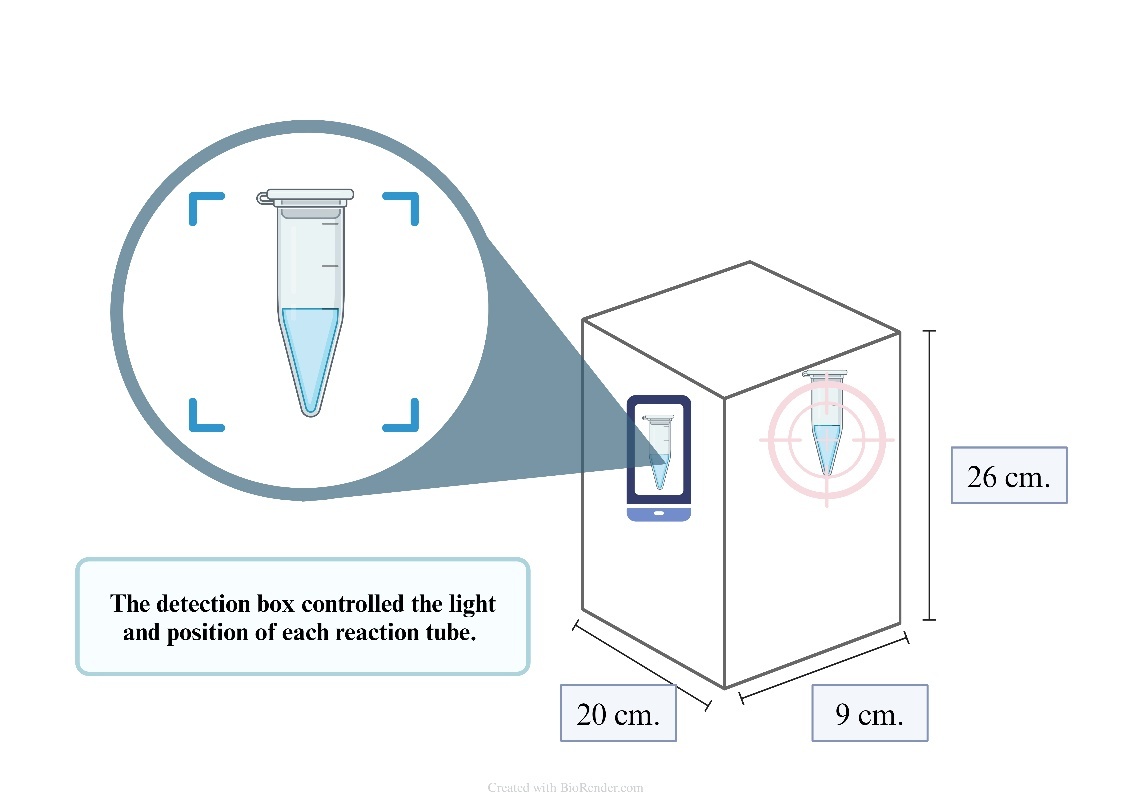

Figure 1 The detection box.

The validity of the modified bismuth method was designed to assess the methodʼs ability to produce reliable outcomes over repetition. Using serial dilutions of NaHS, the repeatability of the bismuth method was validated 3 times on the same day, and the inter-day precision of the bismuth method was validated on three separate days, with triplicates on each day.

This study also utilized artificial saliva as a solvent to ensure that matrix variability did not affect the performance of the modified bismuth methods [32]. Artificial saliva was prepared by the pharmaceutical unit, Faculty of Dentistry, Prince of Songkla University. The standard sulfide solution was dissolved in artificial saliva, and the performance study was performed as described above.

Modified ninhydrin method

The reaction between ninhydrin and an amino acid produces a dark purple compound. Based on the findings of the previous study, which demonstrated no significant difference in absorbance between putrescine, cadaverine, and their combination, putrescine was chosen as the amine standard for this study [33]. After conducting a pilot study (data not shown), the researcher determined that the optimal conditions for the ninhydrin method were as follows: 300 μL of standard putrescine solution was placed in a microcentrifuge tube with 0.2% ninhydrin dissolved in deionized water and phosphate buffer (pH 8.0), then vortexed and refluxed at 85 °C for 7 min. After completing the reflux time, each reaction tube was placed at room temperature to cool for 15 min. The color change of the solution was captured by a smartphoneʼs camera using the detection box, and the RGB values of the digital image were analyzed by the ColorPicker application. The color intensities would be shown as ∆R, ∆G, and ∆B, respectively. The calibration curves were plotted against the concentration of putrescine versus the color intensities. The standard calibration curve for measuring the amount of total amines in the next experiment would be the one with the steepest slope on the calibration curve [27,28].

The performance of the modified ninhydrin method was determined using linearity test of different concentrations of putrescine. In addition, using the standard method, light absorbance readings at 570 nm were determined using Multiskan™ FC Microplate Photometer (Thermo Scientific™).

The validity of the modified ninhydrin method was determined by intra-day and inter-day precision. The percentage relative standard recovery (%RSD) was studied to obtain the validity of the developed method. In order to ensure precision repeatability, the %RSD should be within the range of 0.5 to 2.0 of a theoretical value as determined by the Hortwitz function [34]. The following equationʼs formula provided the percentage relative standard recovery (%RSD) calculation: [35]

The performance testing was repeated after the various putrescine concentrations were dissolved in artificial saliva to demonstrate that matrix variability had no effect on the methodʼs effectiveness [32].

Measurement of salivary H₂S and total amines

Subject selection

The number of subjects in this study was calculated using sample size calculators for designing clinical research [36]. Unstimulated saliva was obtained from 105 adult volunteers with the following criteria: Not receiving any periodontal treatment within 6 months, not receiving antibiotic treatments within the last 3 months, and not receiving medication that may induce xerostomia. Before the appointment, the sample collection protocol was explained and informed consent was obtained verbally and legally document, and the participants were instructed to maintain their standard dietary and oral hygiene practices. They also received instructions to abstain from using commercial mouth rinse for 24 h before this appointment. The sample collection process was conducted between 9:00 a.m. and 12:00 a.m.

Sample collection and clinical examination

Unstimulated saliva was collected by spitting into a disposable cup with a plastic lid over a period of 5 min and using parafilm to prevent sample contamination and the release of H₂S into the atmosphere [37]. Saliva samples were immediately tested with the modified bismuth and ninhydrin methods following the completion of each dayʼs oral examination. The remaining samples were then placed in microcentrifuge tubes and encapsulated with parafilm before being frozen and stored at −80 °C for further real-time PCR analyses.

Each saliva sample was mixed with the freshly prepared bismuth solution. After the reaction time, the production of H₂S was observed visually and photographed using the detection box. The technical personnel would evaluate the bismuth sulfide precipitation using a computer with a fixed screen brightness and image size. Three technical staff members scored the precipitation at the bottom of the microcentrifuge tube using a visual scale, from no color production (score 0), small color change to black (score 1), medium color change (score 2), to maximum color change production (score 3). Three technical personnel underwent training and calibration before assigning a score for bismuth sulfide. After training, Fleiss Kappa values indicated almost perfect agreement among examiners regarding consistency among stage raters (K value: 0.85; 95% confidence interval [CI]: 0.74 to 0.91). Cohenʼs kappa values for intra-examiners ranged from 0.81 to 0.85, indicating near-perfect agreement [38].

To determine the quantities of salivary total amines, the mixture of ninhydrin reagent, phosphate buffer, and saliva samples was mixed, refluxed in a water bath, and cooled. The color change of the solution was then captured by a smartphoneʼs camera, and the RGB values of the digital image were analyzed using the ColorPicker application, and salivary total amines were found by converting the values into mM units using a standard calibration curve. Both salivary H₂S and total amines were tested in triplicate.

DNA extraction and real-time PCR analyses

Saliva samples were centrifuged for 5 min at 10,000 rpm. The resultant pellet was resuspended in 20 mg/mL freshly prepared lysozyme (Amresco Inc., Solon, OH, USA) and was incubated at 37 °C for 60 min to lyze the bacterial cell wall. Then, bacterial DNA was extracted, purified, and eluted using the PureDirex^ Genomic DNA Isolation kit (Bio-Helix Co., LTD., Keelung City, Taiwan) according to the manufacturer’s instructions.

Periodontal bacteria, F.nucleatum, P.gingivalis, P.intermedia, and A.actinomycetemcomitans were identified using real-time PCR analysis. The primer sequences for detecting each bacterial species are presented in Table 1. An aliquot of qPCR master mix, comprising 5 µL of purified DNA template from a saliva sample, 2 µL of a specific primer pair, 3.4 µL of nuclease-free water, and 10 µL of 2× SensiFAST SYBR^® No-ROX mix (Bioline Reagent Ltd., Foster City, CA, USA), was amplified using the CFX96 Touch^TM Real-Time PCR detection system (Bio-Rad Laboratories, Inc). Duplicate samples were routinely used for determination.

Table 1 Specific primer sequences for real-time PCR analyses.

The cycle threshold values (Ct values) from a real-time PCR detection system and the standard curves of serial dilution of each periodontal pathogen from the Oral Microbiology Laboratory, Faculty of Dentistry, Prince of Songkla University were utilized to determine the quantity of bacteria in each sample, which was expressed as log₁₀ CFU/mL.

Statistics

Statistical analyses were conducted using the IBM SPSS Version 29.0 software package (SPSS^, IBM, USA). Descriptive statistics were used to describe the main features of modified bismuth and ninhydrin methods and characteristics of the study population. Correlations were assessed using the Spearman correlation coefficient (r_s) determination to find out if there was a correlation between the quantity of periodontal pathogens in saliva, salivary H₂S, and salivary total amines. A p-value less than 0.05 was considered statistically significant.

Results and discussion

This study evaluated the performance and validity of the modified bismuth and ninhydrin methods using standard solutions, in addition to their applicability in biological samples.

Modified bismuth method

Based on visual analysis, the bismuth solutionʼs limit of detection (LOD) was approximately 1 - 2 ppm NaHS dissolved in deionized water. A stability test was also conducted to determine the optimal storage time for the bismuth solution during the manufacture of a sulfide test kit for early detection of salivary H₂S. The same amount of bismuth sulfide precipitate was produced by maintaining the bismuth solution at 4 °C for 23 weeks as when the bismuth solution was freshly prepared. (Figure S1) This study conducted both intra- and inter-day experiments, and the results indicated that the modified bismuth methodʼs validity was acceptable.

The standard sulfide solution was spiked into artificial saliva, and sensitivity testing was performed. According to Figure 2, after 30 min of reaction time, the bismuth sulfide precipitation in artificial saliva exhibits a similar appearance to that obtained with deionized water.

Figure 2 Visual detection limit of the bismuth solution dissolved in deionized water and artificial saliva.

The results revealed that the performance of the modified bismuth method was close to previous studies, with the visual detection limit (LOD) of 1 - 2 ppm NaHS [7]. Consistent with the previous study, it showed that H₂S from standard sulfide and periodontal bacteria degradation can be detected and graded using the bismuth method [7,8]. This finding suggests that the modification of the bismuth method might be used as a screening for periodontal diseases. The studyʼs results on the stability of bismuth solutions are interesting. The same amount of bismuth sulfide precipitate was produced by maintaining the bismuth solution at 4 °C for 23 weeks as when the bismuth solution was freshly prepared. This result suggests that the bismuth solution could be suitable for long-term storage when producing a sulfide test kit for early detection of salivary H₂S, which would be advantageous for future studies. The precision test demonstrated that the validity of the modified bismuth method was acceptable. In addition, using artificial saliva instead of deionized water revealed that 30 min of reaction time was enough to ensure that the viscosity of the matrix did not affect the bismuth sulfide precipitation.

Modified ninhydrin method

The calibration curves were plotted against the concentration of putrescine versus the change in slope for the R, G, and B values. The delta-G (ΔG) values were chosen for measuring putrescine because they had the steepest slope (slope = 30.06) in the calibration plot with a linear range of 0.5 to 4.0 mM (Figure 3).

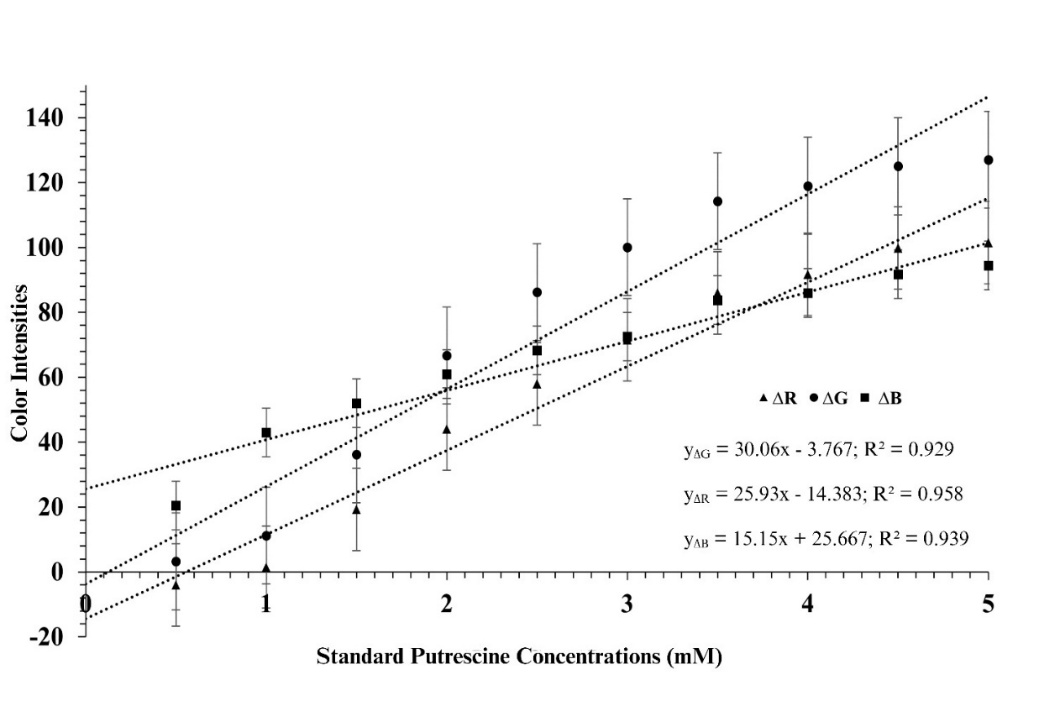

Figure 3 The relationship between standard putrescine concentrations and color intensities (∆R, ∆G, and ∆B).

The linearity test showed that the pale-yellow solution turned into purple solution at 1.5 to 2.0 mM putrescine. The similar trend of the standard calibration curve and the linearity of Abs_570nm, ∆G, and putrescine concentrations suggested that the modified ninhydrin methodʼs results could also be analyzed using ∆G values.

The scoring system of ninhydrin method was developed using the standard calibration curve of ∆G and putrescine concentrations by determining the slope between each adjacent pair of dots on the standard calibration curve. The changing slope was related to the color change in the reaction tube. After calculating the average slope, the total amine detection scoring system could range from score 1 to score 3. (Table S1)

The intra- and inter-day precision of the modified ninhydrin method was evaluated using %RSD. Table 2 showed that %RSD of modified ninhydrin method ranged from 2.40 to 22.50

Table 2 The intra- and inter-day precision of the ninhydrin method.

The researcher spiked the putrescine solution into artificial saliva and conducted linearity testing. Figure 4 showed a trend that was similar to the standard calibration curve between ∆G and putrescine concentrations. The following equation could explain the relationship between G and various putrescine concentrations spiked in artificial saliva:

The amount of salivary total amines in the next experiment would be calculated using this equation.

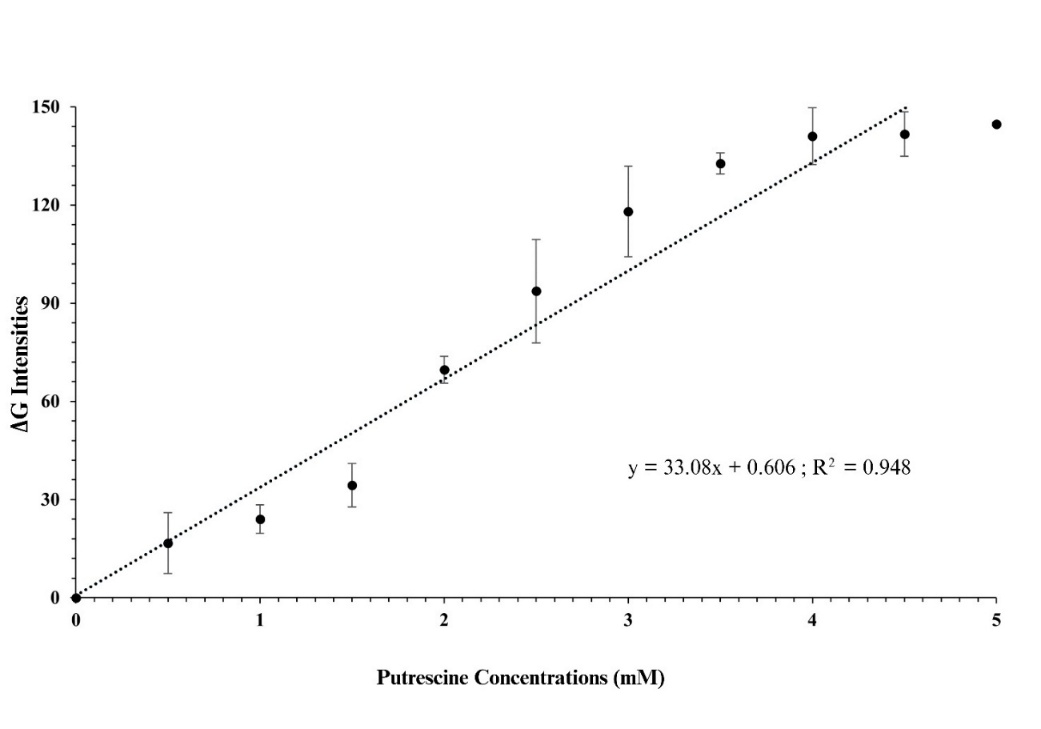

Figure 4 The relationship between ∆G and different putrescine concentrations spiked in artificial saliva.

The ninhydrin scoring system can also grade salivary total amines in mM units and categorize them into 3 groups. (Table S1)

The modified ninhydrin method showed that the pale-yellow solution changed to a purple solution when there was 1.5 to 2.0 mM putrescine, and the Abs_570nm at that point was similar to Iwanicka’s study, which suggested that the turning point can distinguish healthy subjects from halitosis patients resulting from the overactivity of bacterial degradation of amino acids [30]. The process of amino acid degradation also happens in the inflammatory process of periodontal diseases. This suggests that the modified ninhydrin colorimetric reaction might be useful in the alternative method of screening periodontal diseases. The validity test showed that, under optimal conditions, the ninhydrin technique has a higher %RSD than the Horwitz RSD values; [34] however, for use as a screening test, the precision was acceptable. Furthermore, the precision study used only putrescine as an analyte, but in human saliva, other amines and amine compounds can be detected via ninhydrin.

Measurement of salivary H₂S and total amines

Demographic data of the study populations and salivary analysis

One hundred and five adult participants were recruited from the Dental Hospital of the Faculty of Dentistry, Prince of Songkla University. The findings demonstrated that nearly all participants exhibited a positive response to H₂S and total amines. Table 3 presented the demographic data of the studyʼs population, the results of both methods, and the number of participants in each score category.

Table 3 Demographic data of the study population and results for saliva analysis.

DNA extraction and real-time PCR analyses

Crude genomic DNA samples were extracted from saliva samples. Periodontal pathogens and total bacteria were determined using real-time PCR. However, this study population did not detect A. actinomycetemcomitans. The quantities of 3 periodontal pathogens in each saliva sample varied in relation to H₂S and total amines. In Table 4, the median and range of periodontal bacteria amounts were shown for bismuth and ninhydrin scores.

Table 4 The median and range of periodontal bacteria quantities in bismuth and ninhydrin scores.

Correlation analyses

Correlation analysis of the whole study population showed a significant correlation between the levels of 3 periodontal pathogens and bismuth score. Using the ninhydrin score, the quantities of F. nucleatum were significantly correlated with salivary total amines. (Table 5).

Table 5 The correlation between the quantity of periodontal pathogens, bismuth, and ninhydrin scoring system.

^* Analysis was carried out using Spearman’s correlation coefficient (r_s), p-value <0.05 was considered statistically significant.

The results indicated that it might be possible to find the aqueous form of H₂S and total amines in saliva in a simpler way. The higher bismuth score indicates high H₂S levels in saliva and is related to the quantity of periodontopathic bacteria. It was discovered that the amounts of the periodontal pathogens F. nucleatum, P. gingivalis, and P. intermedia were correlated to the H₂S level in saliva, consistent with a previous study finding that F. nucleatum had the most rapid H₂S production. High H₂S production was also seen for P. gingivalis, which was associated with periodontal diseases [7,8]. The result could be explained by the presence of periodontopathic bacteria in saliva and subgingival plaque, and there were significant positive correlations between the bacterial counts of A. actinomycetemcomitans, F. nucleatum, P. gingivalis, and P. intermedia in the supragingival plaque, subgingival plaque, and saliva samples [42,43].

This study indicated that we could measure total amines in saliva using the ninhydrin method and a simpler way with a smartphone application to determine RGB values, both of which can give clearer and easier-to-understand results. Previous studies try to use smartphone applications for monitoring the RGB values of colorimetric reactions, which have been used in many studies; the results show no significant difference between traditional and alternative methods [28]. However, the results and accuracy in the modified ninhydrin method might be different from those of other studies. This study only used putrescine to create the standard calibration curve; however, when researchers use the ninhydrin method on human saliva, the ninhydrin reagent can identify other amine compounds. Earlier study showed that measuring polyamines in human saliva can be done easily with a simple sample preparation method and HPLC, which is reliable and accurate, but the process still needs HPLC, which is costly and needs a skilled technician [44].

The ninhydrin score was related to the quantity of total amines; however, only the quantity of F. nucleatum and salivary total amines showed a significant correlation. However, several studies indicated that amines are involved in the inflammatory process of periodontal diseases [5,22]. An increase in periodontal inflammation elevates salivary amine levels [22,45]. Oral bacteria, including periodontal pathogens, generate putrescine and other polyamines, which are released into the mouth cavity after the breakdown of bacterial cells in reaction to the host immune response [20]. The synthesis of H₂S and amines in the oral cavity is complicated and requires more investigation in future studies to strengthen our knowledge of the processes behind H₂S and total amines production, periodontal parameters, and its implications for periodontal diseases screening.

This research minimized sampling bias by employing a large, representative sample. Limitations of this research include the lack of periodontal risk factors, radiographic exams, criteria, and definitive diagnosis. The subsequent studies should evaluate and control confounding variables, including gender, age, and smoking behaviors, that might have influenced the studyʼs results.

Conclusions

The studyʼs results indicate that the modified bismuth and ninhydrin methods have acceptable validity and can be used to find periodontopathic bacteria and their byproducts; however, implications for periodontal screening require more investigation to clarify the mechanism and clinical consequences. Future research should focus on a more severe group of periodontal diseases and investigate other periodontal risk factors in order to obtain a greater comprehension of the mechanisms underlying bacterial H₂S and amines production and their influence on clinical parameters.

Acknowledgements

The Faculty of Dentistry at Prince of Songkla University and the Graduate School at Prince of Songkla University provided financial support for this study (PSU.GS. Financial Support for Thesis: Fiscal Year 2024). Thank you to all of the staff and volunteers at the Preventive Clinic, Faculty of Dentistry, Prince of Songkla University, for their guidance, great cooperation, and encouragement. I appreciate the efforts of all the scientists and staff at the Molecular Biotechnology and Bioinformatics Division of Biological Science, Faculty of Science, and all staff at the Oral Microbiology Laboratory, Faculty of Dentistry, Prince of Songkla University, for their helpful suggestions and hospitality.

Declaration of generative AI in scientific writing

No generative AI or AI-assisted technologies were used in this article.

CRediT author statement

Conception and design of study: Cholthicha Piamsiri, Nattaporn Youravong, Rawee Teanpaisan, Suchera Thananimit, Jaranya Hunsrisakhun

Acquisition of data: Cholthicha Piamsiri, Nattaporn Youravong, Suchera Thananimit

Analysis and/or interpretation of data: Cholthicha Piamsiri, Nattaporn Youravong, Suchera Thananimit

Drafting the manuscript: Cholthicha Piamsiri

Revising the manuscript critically for important intellectual content: Rawee Teanpaisan, Jaranya Hunsrisakhun

Approval of the version of the manuscript to be published: Cholthicha Piamsiri, Nattaporn Youravong, Rawee Teanpaisan, Suchera Thananimit, Jaranya Hunsrisakhun

References

[1] TJ Ko, KM Byrd and S Kim. The chairside periodontal diagnostic toolkit: Past, present, and future. Diagnostics (Basel) 2021; 11(6), 932.

[2] LM Sedghi, M Bacino and YL Kapila. Periodontal disease: The good, the bad, and the unknown. Frontiers in Cellular and Infection Microbiology 2021; 11, 766944.

[3] GN Belibasakis, D Belstrom, S Eick, UK Gursoy, A Johansson and E Kononen. Periodontal microbiology and microbial etiology of periodontal diseases: Historical concepts and contemporary perspectives. Periodontol 2000 2023. https://doi.org/10.1111/prd.12473

[4] BoD Health. Report on the eighth national oral health survey of Thailand 9^th 2023. Department of Health, Ministry of Public Health, Nonthaburi, Thailand, 2024.

[5] MH Rashid, SPK Yellarthi, PK Yellarthi, BGL Didugu and A Mamillapalli. Combined assessment of lysine and N-acetyl cadaverine levels assist as a potential biomarker of the smoker periodontitis. Amino Acids 2024; 56(1), 41.

[6] A Wang, CP Wang, M Tu and DT Wong. Oral biofluid biomarker research: Current status and emerging frontiers. Diagnostics 2016; 6(4), 45.

[7] A Basic, S Blomqvist, A Carlen and G Dahlen. Estimation of bacterial hydrogen sulfide production in vitro. Journal of Oral Microbiology 2015; 7(10), 28166.

[8] A Basic and G Dahlen. Hydrogen sulfide production from subgingival plaque samples. Anaerobe 2015; 35, 21-27.

[9] F Aizawa, M Kishi, T Moriya, M Takahashi, D Inaba and M Yonemitsu. The analysis of characteristics of elderly people with high VSC level. Oral Dis 2005; 11, 80-82.

[10] M Morita and HL Wang. Relationship between sulcular sulfide level and oral malodor in subjects with periodontal disease. Journal of Periodontology 2001; 72(1), 79-84.

[11] A Apatzidou, E Bakirtzoglou, I Vouros, V Karagiannis, A Papa and A Konstantinidis. Association between oral malodour and periodontal disease-related parameters in the general population. Acta Odontologica Scandinavica 2013; 71(1), 189-195.

[12] C Calil, F Liberato, A Pereira, M de Castro Meneghim, J Goodson and F Groppo. The relationship between volatile sulphur compounds, tongue coating and periodontal disease. International Journal of Dental Hygiene 2009; 7(4), 251-255.

[13] YH Lee, SI Shin and JY Hong. Investigation of volatile sulfur compound level and halitosis in patients with gingivitis and periodontitis. Scientific Reports 2023; 13, 13175.

[14] S Awano, K Gohara, E Kurihara, T Ansai and T Takehara. The relationship between the presence of periodontopathogenic bacteria in saliva and halitosis. International Dental Journal 2002; 52(5), 212-216.

[15] Y Makino, T Yamaga, A Yoshihara, K Nohno and H Miyazaki. Association between volatile sulfur compounds and periodontal disease progression in elderly non‐smokers. Journal of Periodontology 2012; 83(5), 635-643.

[16] JL Kroll, CA Werchan, AG Reeves, KJ Bruemmer, AR Lippert and T Ritz. Sensitivity of salivary hydrogen sulfide to psychological stress and its association with exhaled nitric oxide and affect. Physiology & Behavior 2017; 179, 99-104.

[17] E Zaorska, M Konop, R Ostaszewski, D Koszelewski and M Ufnal. Salivary hydrogen sulfide measured with a new highly sensitive self-immolative coumarin-based fluorescent probe. Molecules 2018; 23(9), 2241.

[18] JD Walters. Polyamine analysis of human gingival crevicular fluid. Journal of Periodontal Research 1987; 22(6), 522-523.

[19] S Goldberg, A Kozlovsky, D Gordon, I Gelernter, A Sintov and M Rosenberg. Cadaverine as a putative component of oral malodor. Journal of Dental Research 1994; 73(6), 1168-1172.

[20] M Amin, S Tang, L Shalamanova, RL Taylor, S Wylie, BM Abdullah and KA Whitehead. Polyamine biomarkers as indicators of human disease. Biomarkers 2021; 26(2), 77-94.

[21] S Chu, AKY Chan and CH Chu. Polyamines in dysbiotic oral conditions of older adults: A scoping review. International Journal of Molecular Sciences 2024; 25(19), 10596.

[22] A Sakanaka, M Kuboniwa, E Hashino, T Bamba, E Fukusaki and A Amano. Distinct signatures of dental plaque metabolic byproducts dictated by periodontal inflammatory status. Scientific Reports 2017; 7, 42818.

[23] N Balci, S Kurgan, A Cekici, T Cakır and MA Serdar. Free amino acid composition of saliva in patients with healthy periodontium and periodontitis. Clinical Oral Investigations 2021; 25(6), 4175-4183.

[24] M Greabu, A Totan, D Miricescu, R Radulescu, J Virlan and B Calenic. Hydrogen sulfide, oxidative stress and periodontal diseases: A concise review. Antioxidants 2016; 5(1), 3.

[25] SS Gul, AA Abdulkareem, AM Sha and A Rawlinson. Diagnostic accuracy of oral fluids biomarker profile to determine the current and future status of periodontal and peri-implant diseases. Diagnostics 2020; 10(10), 838.

[26] P Kuasuwan, K Nittayaboon, N Chandeying and V Chandeying. Validity evaluation of in-house preparation kit, vaginal pH paper test combined amine tube test, for the simple diagnosis of bacterial vaginosis. Journal of the Medical Association of Thailand 2012; 95(6), 747-751.

[27] S Arsawiset and S Teepoo. Ready-to-use, functionalized paper test strip used with a smartphone for the simultaneous on-site detection of free chlorine, hydrogen sulfide and formaldehyde in wastewater. Analytica Chimica Acta 2020; 1118, 63-72.

[28] J Jantra, S Teepoo and S Thananimit. Smartphone-based imaging colorimetric assay for monitoring the quality of curcumin in turmeric powder. Analytical Sciences 2024; 40(7), 1311-1321.

[29] A Yoshida, M Yoshimura, N Ohara, S Yoshimura, S Nagashima, T Takehara and K Nakayama. Hydrogen sulfide production from cysteine and homocysteine by periodontal and oral bacteria. Journal of Periodontology 2009; 80(11), 1845-1851.

[30] K Iwanicka‐Grzegorek, E Lipkowska, J Kepa, J Michalik and M Wierzbicka. Comparison of ninhydrin method of detecting amine compounds with other methods of halitosis detection. Oral Diseases 2005; 11, 37-39.

[31] R Munoz-Olivas. Screening analysis: An overview of methods applied to environmental, clinical and food analyses. TrAC Trends in Analytical Chemistry 2004; 23(3), 203-216.

[32] National Association of Testing Authorities. Guidelines for the validation and verification of quantitative and qualitative test methods. National Association of Testing Authorities, New South Wales, Australia, 2012.

[33] J Dadamio, MV Tornout, SV den Velde, R Federico, C Dekeyser and M Quirynen. A novel and visual test for oral malodour: First observations. Journal of breath research 2011; 5(4), 046003.

[34] I Taverniers, MD Loose and EV Bockstaele. Trends in quality in the analytical laboratory. II. analytical method validation and quality assurance. TrAC Trends in Analytical Chemistry 2004; 23(8), 535-552.

[35] R Kumar, R Kumar, R Khursheed, A Awasthi, N Khurana, SK Singh, S Khurana, N Sharma, P Gunjal, J Kaur and Leander Corrie. Development and validation of RP-HPLC method for estimation of fisetin in rat plasma. South African Journal of Botany 2021; 140, 284-289.

[36] SB Hulley, SR Cummings, WS Browner, DG Grady and TB Newman. Designing clinical research. 4^th ed. Lippincott Williams & Wilkins, Philadelphia, 2013.

[37] A Tangerman. Measurement and biological significance of the volatile sulfur compounds hydrogen sulfide, methanethiol and dimethyl sulfide in various biological matrices. Journal of Chromatography B-Analytical Technologies in the Biomedical and Life Sciences 2009; 877(28), 3366-3377.

[38] P Schober, C Boer and LA Schwarte. Correlation coefficients: Appropriate use and interpretation. Anesthesia & Analgesia 2018; 126(5), 1763-1768.

[39] MA Nadkarni, FE Martin, NA Jacques and N Hunter. Determination of bacterial load by real-time PCR using a broad-range (universal) probe and primers set. Microbiology 2002; 148(1), 257-266.

[40] I Saygun, A Kubar, S Sahin, K Sener and J Slots. Quantitative analysis of association between herpesviruses and bacterial pathogens in periodontitis. Journal of Periodontal Research 2008; 43(3), 352-359.

[41] JM Morillo, L Lau, M Sanz, D Herrera, C Martin and A Silva. Quantitative real‐time polymerase chain reaction based on single copy gene sequence for detection of periodontal pathogens. Journal of Clinical Periodontology 2004; 31(22), 1054-1560.

[42] J He, W Huang, Z Pan, H Cui, G Qi, X Zhou and H Chen. Quantitative analysis of microbiota in saliva, supragingival, and subgingival plaque of Chinese adults with chronic periodontitis. Clinical Oral Investigations 2012; 16(6), 1579-1588.

[43] H Haririan, O Andrukhov, K Bertl, S Lettner, S Kierstein, A Moritz and X Rausch-Fan. Microbial analysis of subgingival plaque samples compared to that of whole saliva in patients with periodontitis. Journal of Periodontology 2014; 85(6), 819-828.

[44] M Venza, M Visalli, D Cicciu and D Teti. Determination of polyamines in human saliva by high-performance liquid chromatography with fluorescence detection. Journal of Chromatography B: Biomedical Sciences and Applications 2001; 757(1), 111-117.

[45] A Basic and G Dahlen. Microbial metabolites in the pathogenesis of periodontal diseases: A narrative review. Frontiers in Oral Health 2023; 4, 1210200.

Supplementary Materials

This manuscript contains one supplement figure and one supplement table with the figure and table captions listed below:

Figure S1 The stability of the bismuth solution.

Table S1 Scoring system for total amines detection.
