Trends Sci. 2025; 22(12): 11063

Copper (Cu²⁺) is the third most abundant heavy metal after Fe³⁺ and Zn²⁺ [1]. Therefore, due to its widespread use, Cu²⁺ is a significant metal pollutant among all metal ions [2]. As a cofactor in about 20 enzymes (metalloenzymes), copper, in particular, is a vital micronutrient and plays a considerable role in biological processes. Take cytochrome C oxidase, tyrosinase, and superoxide dismutase, for instance [3-5]. An appropriate level of copper is also necessary for several other biological processes, including the creation of red blood cells and bone [6]. However, elevated concentrations of Cu²⁺ lead to oxidative stress and conditions linked to neurodegenerative illnesses such as Alzheimerʼs [7], Wilsonʼs [8], and Menkeʼs [9]. Low levels, however, can impact bone and brain development, as well as the immune system [10]. Furthermore, chronic exposure to elevated Cu²⁺ levels has been linked to renal and liver damage. When released into the environment in uncontrolled quantities, agricultural and industrial copper waste becomes a significant environmental contaminant [11-13]. As a result, research on Cu²⁺ detection holds considerable potential.

Numerous sensor innovations have been made to identify transitions of heavy metal ions in biological and environmental systems [14-16]. Research mainly focuses on developing probes for colorimetric imaging and/or fluorescence systems that are selective for heavy metal ions [14,17]. Because of their low detection rate, high selectivity and sensitivity, and simplicity of use [18-21], these fluorescence probes become a new promising technique for metal ions among the well-established analysis methods of Cu²⁺ such as volumetric [22], spectrophotometric UV/Vis [23], atomic absorption spectrometry (AAS) [24,25], inductively coupled plasma mass spectrometry (ICP-MS) [26], potentiometric [27,28], voltammetry [29], X-Ray Fluorescence (XRF) [30-34], laser-induced breakdown spectroscopy (LIBS) [35,36], and CdTe quantum dots (QDs) [37]. Nevertheless, most Cu²⁺ sensors suffered interference from competing cations such as Zn²⁺, Hg²⁺, Pb²⁺, Fe³⁺, and Ag⁺ [38-40]. Consequently, considerable interest remained in developing highly selective fluorescence probes for copper ions.

Because their structural, spectral, and chemical properties are easily modified and rely on the structural characteristics of the ligands, chelated Schiff base fluorescent molecules are of great interest [28,41]. Specifically, the stability of the complex, achieved through the suppression of azomethine group isomerization, has a considerable effect on the fluorescence [42]. Another class of Schiff base groups that has the potential to improve a chemosensor’s stiffness and selectivity is azine, an extended Schiff base moiety [43,44]. Furthermore, by modifying the Schiff base moiety in this way, the sensor can undergo an ESIPT or AIE mechanism [45], for some cases, could be AIE+ESIPT [46-48], which enhances its photophysical characteristics and yields benefits like various wavelength emissions and significant Stokes shifts because of enol-keto tautomerization [49-50].

ESIPT is generally reported as a fast-occurring mechanism with velocities ranging from fractions of a picosecond to tens of picoseconds [42]. To verify the ESIPT process instead, a DFT/TD-DFT computational calculation is frequently employed [49,51-55]. Therefore, adding the azine moiety, which functions as a hydrogen acceptor and enhances ligand stability, is anticipated to improve both the ESIPT process and the sensor’s fluorescence in response to a Cu²⁺ metal ion. In addition, a restriction on intramolecular rotation (RIR) of an azine’s rotatable nitrogen single bond (=N-N=) might be diminished and promote an AIE mechanism [56,57].

Here, we developed a novel and intriguing Cu²⁺ ion chemosensor in an aqueous system, demonstrating an AIE-ESIPT mechanism. Furthermore, an in-silico study investigated the sensorʼs behavior before and after ion chelation.

Materials and methods

The reagents and solvents employed were of synthetic and analytical grade, obtained from Sigma-Aldrich and Merck. Before use, all laboratory glassware items were oven-dried. Agilent 500 MHz and 125 MHz spectrometers were used to collect the ¹H- and ¹³C-NMR spectra, which were recorded in CDCl₃. The (major) solventʼs remnant peak served as a reference for the NMR signals. A Shimadzu 8,400 UV/Vis spectrometer was used to evaluate the molar absorptivity and UV/visible absorption spectra in matched 1.0 cm quartz cells. The spectra were captured using data at 0.1 nm intervals. At 25 °C, emission spectra were acquired in a quartz fluorescence cuvette with a 1.0 cm path length using an automated Agilent G9800A Cary Eclipse spectrometer. The slits for excitation and emission were set to 2.5 nm and 20 nm, respectively, while the scanning speed was 600 nm min⁻¹. The average of the resultant spectra was at least 3 times that of the observations from the sample.

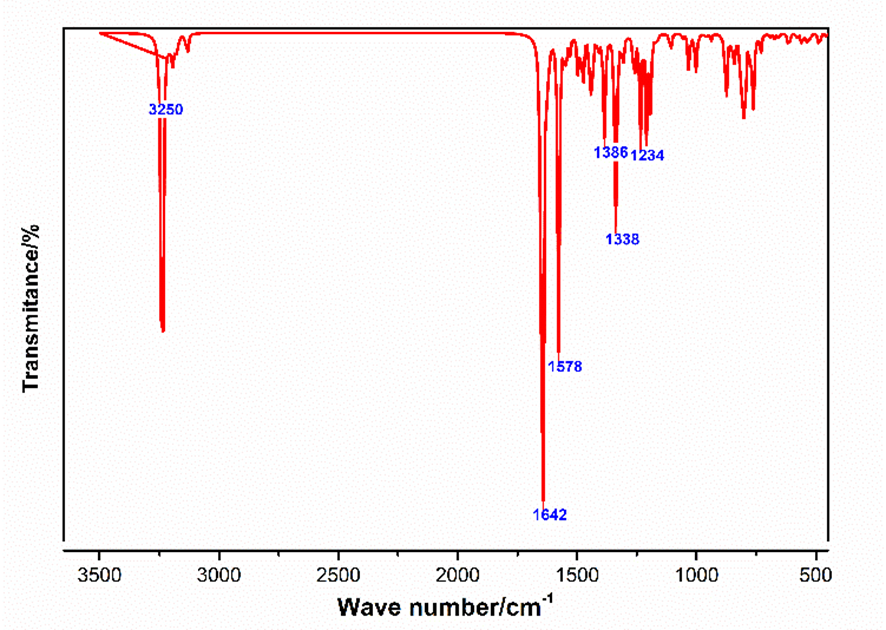

Infrared spectra were recorded using a potassium bromide (KBr) pellet on a Perkin-Elmer FTIR. In both positive and negative ion modes, relative masses were determined using a Waters High-Resolution Time-of-Flight Mass Spectrometer (Lockspray/HR-TOF-MS). The uncorrected melting points were obtained from MP55 electrothermal equipment with a capillary tube. The DLS particle size distribution analysis was performed using the Horiba nanoPartica SZ-100V2 Series. DFT and TD-DFT computations [58,59] were run on a PC equipped with an Intel®Xeon (R) CPU E5-2650 [email protected] GHz × 32 processor, 16 GB of RAM, an SSD PCIe hard drive, and a Zotac GeForce GTX 1080TI AMP EXT CORE VGA. The calculation was performed using the Gaussian 09 program licensed to our univer­sity [49] with the B3LYP level of theory and a 6-311+G(d,p) basis set [14]. The Integral Equation For­malism Variant Polarizable Continuum Model (IE­FPCM) was used in the computations to account for the solvent effect of DMF/H₂O, thereby attaining the actual conditions of the tests [49, 60-65]. Parameters including structural geometry, the infrared and UV/Vis spectrum, and the energy bandgap of HOMO–LUMO were all de­termined to analyze the mechanism of interaction and the occurrence of the enol-keto upon an ESIPT process [49].

Synthesis of 1-((((4-bromothiophen-2-yl)meth­ylene)hydrazineylidene)methyl)naphthalen-2-ol (1)

Compound 1 was synthesized using the analog method described in the publication by Al-Anshori et al. [51]. A 25 mL single-neck round-bottom flask (RBF) was filled with 2-hydroxy-1-naphthaldehyde 4 (0.25 g, 1.45 mmol, 1 eq) and hydrazine monohydrate 98% 5 (0.36 mL, 7.26 mmol, 5 eq), which were then dissolved in 10 mL of methanol. Following 2 h of stirring at room tem­perature, the reaction progressed with TLC (silica gel GF₂₅₄, eluent of n-hexane:ethylacetate (8:2, v/v)). After the solvent evaporated under vacuum, a crude yellowish solid of 2 was obtained, which was then used for the subsequent process without any further purification. A crude of 1-(hydrazineylidenemethyl)naphthalen-2-ol 2 (0.47 g, 2.52 mmol, 1 eq) was added into a 25 mL of three-neck rbf and dissolved in 15 mL of ethanol. Sub­sequently, 4-bromothiophene-2-carboxaldehyde 3 (0.53 g, 2.78 mmol, 1.1 eq) was added to the solution and re­fluxed for 2 h. The resulting precipitated product was then filtered and recrystallized from a mixture of ace­tone and ethyl acetate to yield a yellowish, pure solid (26%, 0.24 g). Upon a TLC (silica gel GF₂₅₄) using a mixture of n-hexane:ethylacetate (10:1, v/v) eluents, pu­rity 1 was verified. M.P. 212-214 °C. IR Spectra (KBr) /cm^-1: 3,106 (C-H sp², sharp), 1,602 (C=N, medium), 1,534 (C=C aryl, strong), 1,299 (C-O -naphthol, strong). UV/Visible spectra in DMF (1.0×10 ⁵ mol dm ³), /nm (ԑ/mol ¹ dm³ cm ¹): 338 (1.49×10⁴), 395 (1.93×10⁴); in DMF:H₂O (1:9, v/v, 1.0×10 ⁵ mol dm ³), /nm (ԑ/mol ¹ dm³ cm ¹): 414 (6.80×10³); Emission spectra in DMF:H₂O (1:9, v/v, 1.0×10 ⁵ mol dm ³), /nm, /nm and λ/nm: 360, 565 and 151, respectively. ¹H-NMR (500 MHz, CDCl₃) δ/ppm; 13.14 (1H, s, H-12), 9.68 (1H, s, H-15), 8.73 (1H, s, H-11), 8.17 (1H, d, J = 8.5 Hz, H-1), 7.88 (1H, d, J = 9.0 Hz, H-10), 7.81 (1H, d, J = 7.8 Hz, H-4), 7.42 (1H, t, H-5), 7.24 (1H, d, J = 9.0 Hz, H-21), 7.57 (1H, m, H-6), 7.41 (1H, s, H-19), and 7.39 (1H, s, H-9); ¹³C-NMR (125 MHz, CDCl₃) δ/ppm; 108.18, 110.80, 119.16, 120.11, 123.80, 127.41, 127.99, 128.17, 129.19, 132.75, 134.33, 134.96, 139.53, 153.38, 161.33, and 162.09. ToF-HRMS (ES⁺) m/z: [M+H]⁺ calculated for [C₁₆H₁₁BrN₂OS-H]⁺: 358.9848, found: 358.9851.

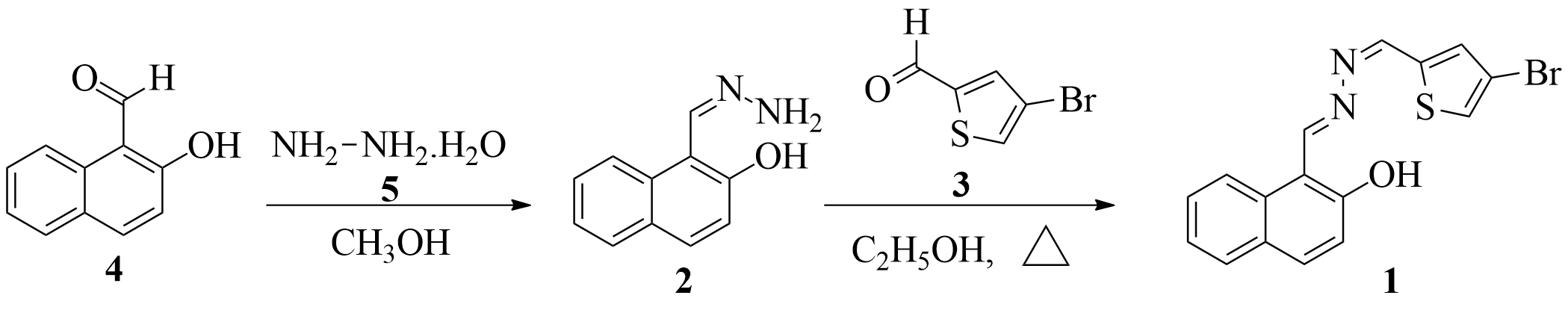

Scheme 1 Synthesis of compound 1.

Chemosensory assay of compound 1 against numerous cations

The assay followed the standard protocol of Al Anshori et al. [51]. A 5 mL of the volumetric flask was used to separately prepare a stock solution (1.0×10 ³ mol dm ³) of compund 1 in DMF, and different cations obtained from sulphate salt (K⁺, Li⁺, Mg²⁺, Fe²⁺, Ni²⁺, Cu²⁺, Al³⁺, Zn²⁺) and nitrate salt (Co²⁺, Cd²⁺, Hg²⁺, Pb²⁺, Ag⁺, and Cr³⁺) in distilled water (0.18 mS/cm). Then, the solution of stock compound 1 and each cation were blended in the ratios of 9:1 to 1:9, with a final ratio of DMF:H₂O of 1:9 (v/v) and a total concentration of 1.0×10 ⁴ mol dm ³. Next, each combination was visualized over 365 nm UV light, accompanied by UV/Vis and fluorescence spectra at 360 nm measurements. Job’s plot experiment [66] calculated the ligand’s binding ratio towards Cu²⁺. Meanwhile, the selectivity experiment was accomplished by mixing a stock solution (1.0×10 ³ mol dm ³) of compound 1 in DMF with a cation solution (1.0 10 ³ mol dm ³), which exposed the most remarkable positive response at a specific stoichiometry acquired from the chemosensory assay. Subsequently, a further equivalent of each competitive cation was independently contaminated to the mixture, resulting in a final ratio of DMF:H₂O of 1:9 (v/v) and a total concentration of 1.0×10 ⁴ mol dm ³. Next, the fluorescence spectra of each combination were captured at 360 nm and 565 nm.

A titration of compound 1 (5.0×10 ⁵ mol dm ³) with the Cu²⁺ metal ion (1.0×10^-5 mol dm ³) in DMF:H₂O (1:9, v/v) was carried out using a spectrophotometric UV/Vis to track the change in their absorbances to find the association constant. The complex stability constant was computed using a Benesi-Hildebrand equation [67,68]. Following a spectrofluorometry measurement of a comparable titration procedure of compound 1 in DMF:H₂O (1:9, v/v, 1.0×10 ⁴ mol dm ³) against the selected metal ion (1.0×10 ⁴ mol dm ³), the Limit of Detection (LoD) and Limit of Quantification (LoQ) of compound 1 were similarly computed using equations of 3.3δ/K and 10δ/K, respectively [69]. The K was the slope of the fluorescence titration curve, and δ was calculated from the standard deviation of the means of nine data emission intensities of compound 1 at maxima. A fluorescence titration of the 1+Cu²⁺ with EDTA was performed to determine the reversibility of compound 1 against Cu²⁺ [70-72]. Before and after the chelation with the Cu²⁺, the emission quantum yield (_em) of compound 1 was determined using a relative value [51] compared to the standard of quinine sulphate in 0.5 M H₂SO₄ (_em = 0.546) [73].

Computational calculation

The computational calculations were performed using DFT and TD-DFT methodologies within the Gaussian 09 software. A theory level of Becke’s three-parameter hybrid exchange function with the Lee-Yang-Parr gradient-corrected correlation functional (B3LYP) and a basis set of 6-311g+(d,p) was further utilized to complete the calculation [74,75]. A solvent of N, N-dimethylformamide (DMF)/H₂O was incorporated into the calculation based on the integral equation formalism of the polarizable continuum model (IEFPCM) to mimic the experimental environment [49,76]. The geometrical structures of the probe and its products at the S₀ and S₁ states were independently optimized to get the related parameters. The calculated infrared wavenumber and UV/Vis absorption spectra were compared to the measured ones to validate the calculation method further. The HOMO and LUMO molecular orbitals, as well as their energy band gap ( E_HOMO-_LUMO), were calculated at the same theoretical level. The frontier molecular orbital (FMO) theory [14,77,78] was used to study and analyze the energy data of the HOMO-LUMO states produced from the optimized molecular geometry of the enol-keto form of compounds 1 and 1+Cu²⁺. Thus, it is possible to assess the manifestation of the excited-state intramolecular proton transfer (ESIPT) mechanism. Generally, this type of intramolecular hydrogen bonding (IHB) must be verified at the ground state before proceeding with the ESIPT process. The IHB will be more stable when the bond length of the phenolic moiety’s acidic proton donor (O-H) is longer, and the imine Schiff base’s proton acceptor (H---N) is shorter. Furthermore, the achievement of the ESIPT is made possible by the reduced band-gap between the excited keto form (K*) and the excited enol form (E*), as well as the lower LUMO of K* compared to E* [49,53].

Results and discussion

Synthesis of compound 1

The compound 1 was successfully synthesized in a two-step reaction via precursor 2, yielding an overall chemical yield of 26% (Scheme 1). A typical, straightforward Schiff base synthetic method [39,51,79] was also applied to compound 1. Thus, no extensive purification was required, yielding a pure yellowish solid. Further elaborative spectroscopic elucidation was employed to confirm the structure of compound 1. A specific Schiff base marker of a double imine bridge at the center of compound 1 was supported by the IR vibrations of C=N at 1,602, in addition to the stretching vibration of C-H sp² at 3,106, C=C aryl at 1,534, and C-O -naphthol at 1,299 cm^-1 (Figure S1). Apart from all IR signals, none of the wavenumbers were associated with the phenolic functional group. As reported elsewhere, a similar type of observation was attributed to an intramolecular hydrogen bonding effect [51].

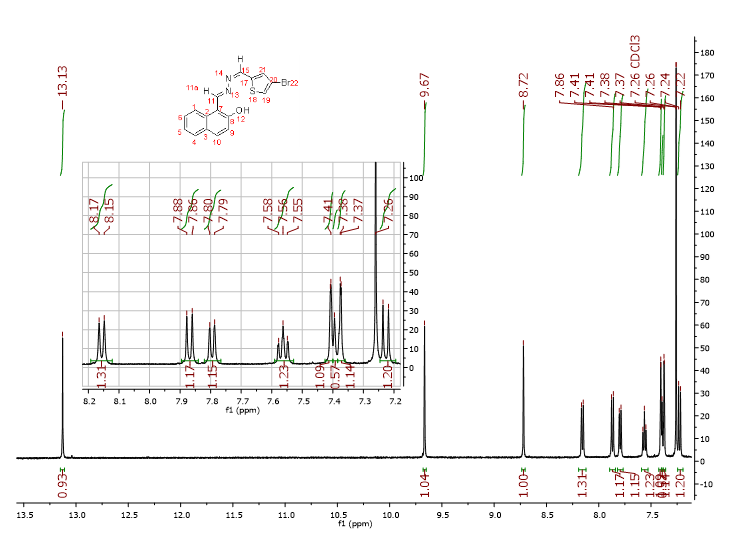

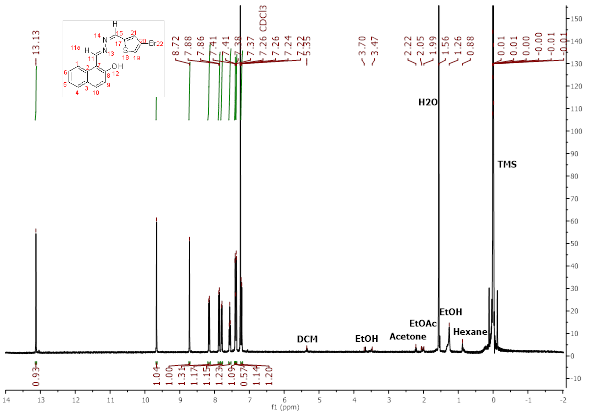

To find out the type of protons constructed in the skeleton of compound 1, a ¹H-NMR characterization was recorded in CDCl₃ (Figure S2), revealing the 6 proton signals appearance of the naphthalenic ring at 8.17 - 7.39 ppm of chemical shifts, 2 azomethine protons at 9.68 and 8.73 ppm, a downfield signal of -OH moiety at 13.14 ppm, and two more protons of 4-bromothiophene at 7.24 and 7.41 ppm, respectively. Commonly, a free phenolic -OH is found at 9.95 ppm [80]. However, in an aprotic solvent like CDCl₃, the intramolecular hydrogen bonding of a phenolic -OH with an imine nitrogen was more pronounced in compound 1. Thus, the phenolic -OH signal of compound 1 was further shifted to 13.14 ppm, as reported for other analogs elsewhere [80,81]. Consequently, the isomer geometry of the C₁₁=N₁₃ was probably E, as verified elsewhere for a typical 2-hydroxy imine moiety [79]. However, as the -N-N- bond connects 2 imine moieties that are freely rotating, the other imine geometry was not well-established [79]. To complement the ¹H-NMR data, the ¹³C-NMR spectra were subsequently obtained (Figure S3). Sixteen carbon signals were recorded, including four thiophene carbons at 108.18, 110.80, 134.33, and 139.53 ppm, two azomethine carbons at 153.38, and 161.33 ppm, respectively, and 10 aromatic carbons at 119.16, 120.11, 123.80, 127.41, 127.99, 128.17, 129.19, 132.75, 134.96, and 162.09 ppm. Overall, the NMR spectra did not reveal any other trace compounds that might have formed during synthesis and further interfered with the photophysical properties of the 1-sensing.

Applying positive electrospray ionization to high-resolution mass spectrometry, the molecular weight was finally confirmed at m/z 358.9851, deviating by 0.8 ppm from the theoretical value (Figure S4). The measured m/z assigned a 12 of DBE, involving 2 naphthalene rings, one thiophene ring, and 9 C sp². Isotopic trace of bromide was revealed by a twin ionization mass peak at m/z of 358.9851 and 360.9817, with abundance ratio of 1:1. Thereby, the molecular formula of 1 was asserted as [C₁₆H₁₁BrN₂OS-H]⁺.

Photophysical properties of compound 1

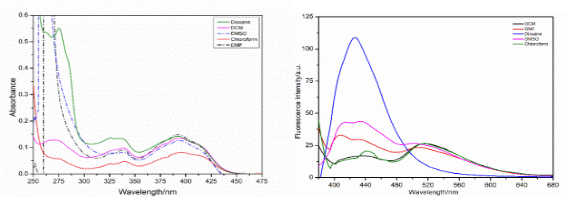

To investigate the photophysical properties of compound 1, the absorption spectra of the compound were measured in a polar aprotic solvent of DMF at a total concentration of 1.0×10 ⁵ mol dm ³. A typical n to π* excitation band was assigned at 395 nm (19,300 ԑ/mol ¹ dm³ cm ¹) (Figure 1), plausibly attributed to the imine (Schiff base) and phenolic moieties. In addition, the presence of conjugated naphthalenic and azomethine resulted in a prominent π to π* transition at 338 nm (14,900 ԑ/mol ¹ dm³ cm ¹). A comparable spectra profile for compound 1 was also observed in other aprotic solvents, including DMSO, dioxane, dichloromethane, and chloroform (Figure S5).

In contrast, the maxima at 395 nm were shifted batochromically to 414 nm (6,800 ԑ/mol ¹ dm³ cm ¹) upon the addition of a more polar protic solvent of H₂O to DMF in a ratio of 9:1 (Figure 1). This bathochromic shift is attributed to enhanced stabilization of the ground state (S₀) via solvent-solute interactions. The preferential stabilization of compound 1 in its ground state (S₀) over the excited state (S₁) is likely due to more effective hydrogen bonding and solvation interactions in the presence of water compared to DMF alone [82]. However, since the hydrogen acceptor capability of DMF toward compound 1 was reduced with an increase in the water concentration, the molar absorptivity of the maxima at 414 nm was decreased almost three times lower than the original at 395 nm.

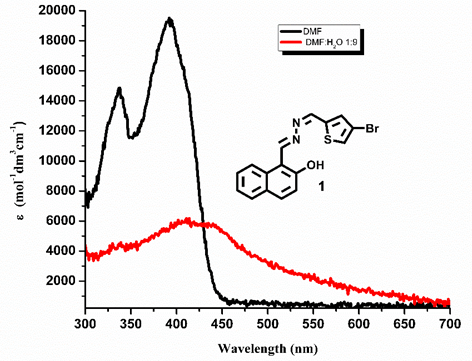

Figure 1 Absorptivity of compound 1 (1.0×10^-5 mol dm^-3) in DMF:H₂O (1:9, v/v) (Red line), in DMF (Black line).

As the emission spectrum profile of the b-naphthol Schiff base, a typical fluorophore, is commonly exhibited upon a specific excitation wavelength, further analysis of the photophysical and sensing properties of compound 1 at 360 nm [69,70] is warranted. Analysis of a colloidal mixture 1 at a total concentration of 1.0×10 ⁴ mol dm ³ at of 360 nm revealed a quenching emission of 515 nm in DMF. The emission was even faded out at a clear solution 1 at a more diluted concentration (Figure 2-Left). In contrast, 14 times emission enhancement (_em = 0.252±0.030) and a 50 nm redshift emerged at the emission spectra of 1 in DMF:H₂O (1:9, v/v) compared to DMF (Figure 2-Right). It was observed that this phenomenon became negligible when probe 1 was used at lower concentrations. Most probably, the energy transfer of DMF toward the 1 in the excited state was attributed to the quenching process, as previously discovered elsewhere [83]. However, in some instances, a Schiff base-based sensor may exhibit aggregation-induced emission (AIE) at increased concentrations of water in organic solvent mixtures [72,73]. This confirmed the activation of emission due to aggregation.

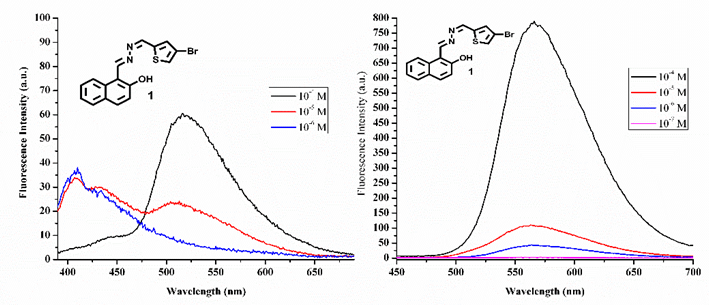

Figure 2 Fluorescence spectra of compound 1 at various concentrations: (Left) (1.0×10 ⁴ - 1.0×10 ⁶ mol dm^-3, 360 nm) in DMF, (Right) (1.0×10 ⁴ - 1.0×10 ⁷ mol dm^-3, 360 nm) in DMF:H₂O (1:9, v/v).

To confirm the AIE phenomenon, an analysis of the emission spectra of compound 1 under a binary solvent of DMF and increased water content (0% to 90%) with a total concentration of 1.0 10 ⁴ mol dm ³ was performed (Figure 3 (Left)). A colloidal mixture of 1 was initially formed at a water content of 50% to 90%, followed by an enhanced emission. It was implied that a colloidal mixture was formed due to the aggregation of compound 1 at high concentration, which further induced enhanced emission. In addition, a bathochromic shift was distinctly observed when the water content increased from 40% to 50%, confirming a typical J aggregation [74].

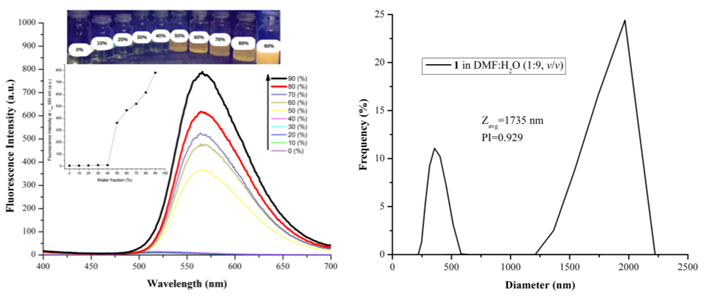

Figure 3 Emission spectra of compound 1 in a mixture of DMF and increased H₂O content (0-90%, v/v), (c_total = 1.0×10^-4 mol dm^-3), 360 nm. Inset: Fluorescence Intensity of water fraction at 565 nm (Left). DLS-Particle Size Distribution Analysis of compound 1 in 90% water fraction (Right).

Further dynamic light scattering (DLS) experiments verified the formation of larger aggregates of the probe in higher water fractions (Figure 3 (Right)). The results showed that the average particle size of compound 1 in 90% water/DMF was 1,735 nm, substantially different from the original clear solution of compound 1 in 100% DMF. The aggregatesʼ polydispersity index (PI) values, larger than 0.7 [84], revealed a typical broad-size particle distribution of compound 1, which was shaped. It was implied that the accumulation of particles associated with solvent molecules was increased upon an increase in water fraction. However, based on the first-order kinetic analysis of the emission change over time (Figure S6), the aggregation fell apart, with a t_1/2 of 29 minutes. The half-life may be prolonged under non-stirred conditions, thereby improving its potential for extensive applications.

Regardless of any solvation effect, the basic skeleton of the -naphthol chromophore exhibited no emission because of a photoinduced electron transfer from the -OH moiety to the naphthalic fluorophore. In fact, a proton acceptor of -C=N adjacent to an -OH proton donor found at compound 1 potentially experienced a solid intramolecular hydrogen bonding [85]. Furthermore, the dominant solvatochromic effect of water (HBD constant of 1.17) [86] on compound 1 even strengthened an existing intramolecular hydrogen bonding, which commonly promotes intramolecular proton transfer at the excited state (ESIPT) [53,87,88]. Therefore, the photoinduced electron transfer was hindered, and the fluorescence of compound 1 was sparked. In particular, the ESIPT mechanism may preserve the planarity of compound 1 via an intramolecular rotational restriction and extend the conjugation system of compound 1 [56,89]. Finally, it may also induce the coupling aggregation-induced emission mechanism [51, 80-82], exhibit fluorescence properties similar to those of compound 1 at high concentrations, and have a physical appearance (Figure 4). This type of phenomenon is well known as AIE-coupled ESIPT, as reported in previous studies [46,90].

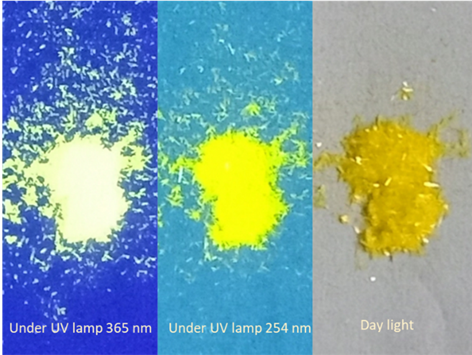

Figure 4 Fluorescence properties of compound 1 in the solid state over UV lamp at 365, 254 nm, and daylight.

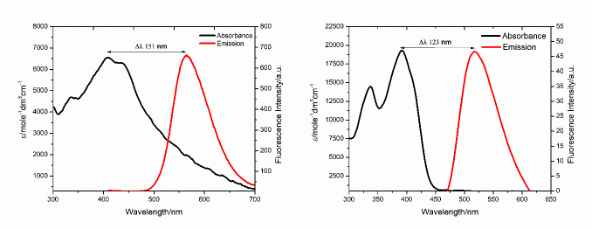

Since the ESIPT process caused compound 1 to exhibit a significant Stokes shift (Δλ) of up to 173 nm in DMF and 151 nm in a 1:9 (v/v) DMF:H₂O mixture (Figure S7), which is beneficial for fluorescence imaging properties such as contrast [91]. Finally, based on the feasible solubility of compound 1 in a more aqueous system with excellent fluorescence properties, the combination of DMF:H₂O (1:9, v/v) system was further used for the probe’s sensing assay.

Sensing nature of compound 1 against metal ions

The sensing assay of 1 in DMF:H₂O (1:9, v/v) against several representative cations including K⁺, Li⁺, Ag⁺, Mg²⁺, Ni²⁺, Cu²⁺, Zn²⁺, Co²⁺, Cd²⁺, Hg²⁺, Pb²⁺, Fe²⁺, Al³⁺, and Cr³⁺ exhibited a typical chelating quenched fluorescence (CHQF). A diminishing bright yellow fluorescence of compound 1 was monitored upon mixing with the metal ions at 365 nm of UV light (Figure 5-bottom), and a transparent yellow color transition was observed under ambient light (Figure 5-top). In particular, an intensive quenching of the fluorescence of compound 1 was demonstrated against Cu²⁺ at a 1:1 ratio. Spectrofluorimetric corroboration was further pursued for the prospective chelating properties of compound 1, using a specific cation in the qualitative assay. Upon a 1:1 mol ratio, all the metal ions quenched the compound 1 to a certain degree. Most of the transition and post-transition metal ions, such as Ag⁺, Cd²⁺, Cr³⁺, Hg²⁺, Ni²⁺, Al³⁺, and Pb²⁺, quenched the probe 1 emission by less than 15%, compared to the parent relative intensity, while ions of Li⁺, Zn²⁺, Fe²⁺, and Co²⁺ were less than 50%. In fact, a distinctive emission quenching of compound 1 at 565 nm was demonstrated against Cu²⁺ (Figure 6).

Figure 5 Qualitative test of compound 1 against representative cations in DMF:H₂O (1:9, v/v) (c_total = 1.0 x 10^-4 mol
dm^-3) over ambient light (top) and 365 nm UV light (bottom).

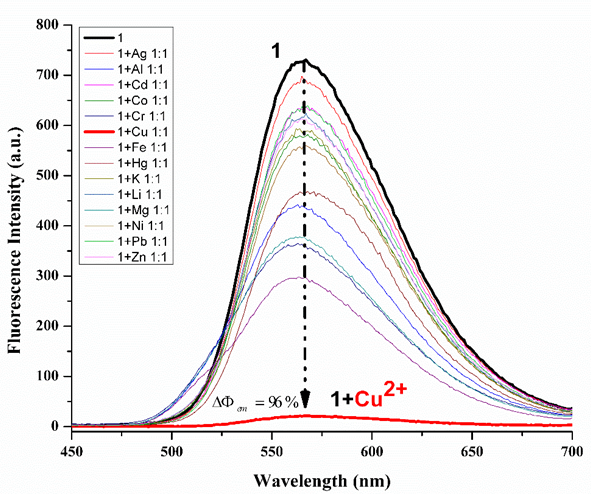

Figure 6 Fluorescence spectra of compound 1 against various metal ions in DMF:H₂O (1:9, v/v) (c_total = 1.0×10^-4 mol dm^-3) at 360 nm and 565 nm.

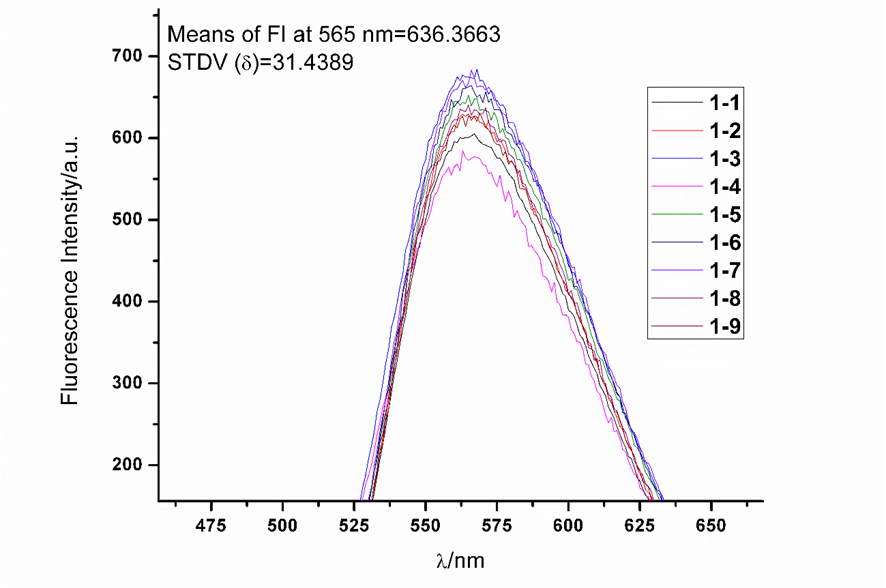

A quantum yield of emission was subsequently determined, verifying the quenching process of compound 1 against Cu²⁺ up to 96% ((_em of 1=0.252±0.030; 1+Cu²⁺=0.012±0.004) (Figure S8). Since the intensive emission of compound 1 is most likely caused by the PET inhibition of the naphthalenic fluorophore due to an ESIPT process, the strong coordination of compound 1 with the Cu²⁺ metal ion might interrupt the ESIPT and allow the PET to occur. Thereby, the emission of compound 1 was tremendously quenched by the Cu²⁺ ion. A similar mechanism has been reported elsewhere for a typical Schiff base chemosensor [89]. Since the Cu²⁺ decreased the emission intensity of compound 1 distinctly, it could be employed for naked-eye detection. Thereby, compound 1 was a typical “on-off” sensor.

Regarding selectivity, compound 1 was a reasonably distinguished Cu²⁺ ion to a certain degree from other representative ions (Figure 7). The chart bar showed that the fluorescence strength of 1+Cu²⁺ was affected by other contaminated metal ions, with a relative fluorescence intensity (FI) increase of up to 15%, especially by Ag⁺, Cd²⁺, Fe²⁺, Ni²⁺, Pb²⁺, K⁺, Li⁺, Mg²⁺, and Zn²⁺. Fewer interferences (< 5%) were demonstrated by Cr³⁺, Hg²⁺, and Al³⁺. Plausibly, probe 1 can be applied as a Cu²⁺ sensor for samples free of Co^2+, which disrupts the fluorescence intensity (FI) of 1+Cu²⁺ by up to 20%. A Job’s plot analysis was then followed to determine the binding ratio between 1 and Cu²⁺. Upon a constant total concentration of 1.0×10 ⁴ mol dm ³, an emission spectrum of a mixture of 1+Cu²⁺ at a ratio of 0.1 to 0.9 was obtained, revealing a securely established complex at a molar ratio of 1:1 (Figure 8). An HRMS-ToF analysis further highlighted the 1:1 complex of 1+Cu²⁺ measured in ES^– with its isotopic traces of Br⁷⁹ and Br⁸¹ (m/z: [C₁₆H₁₀Br⁷⁹CuN₂OS]^–: 419.7022, [C₁₆H₁₀Br⁸¹CuN₂OS]^–: 421.0466) (Figure S9).

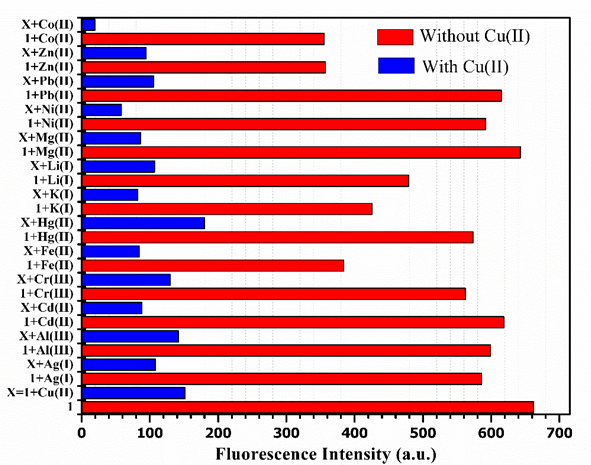

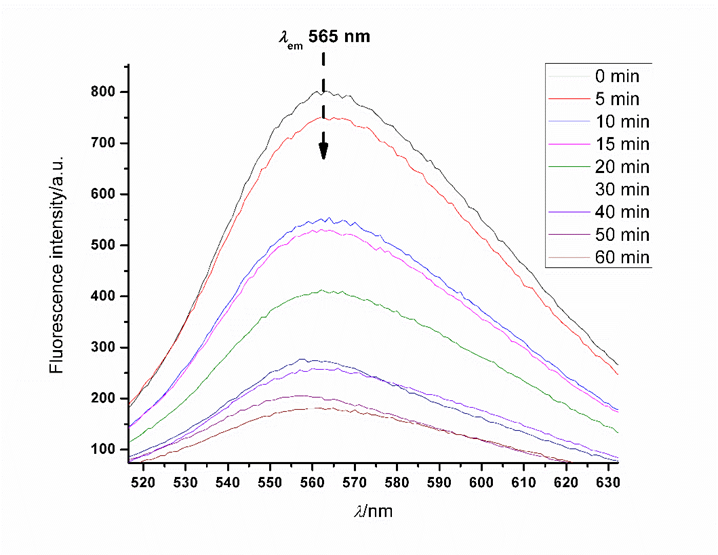

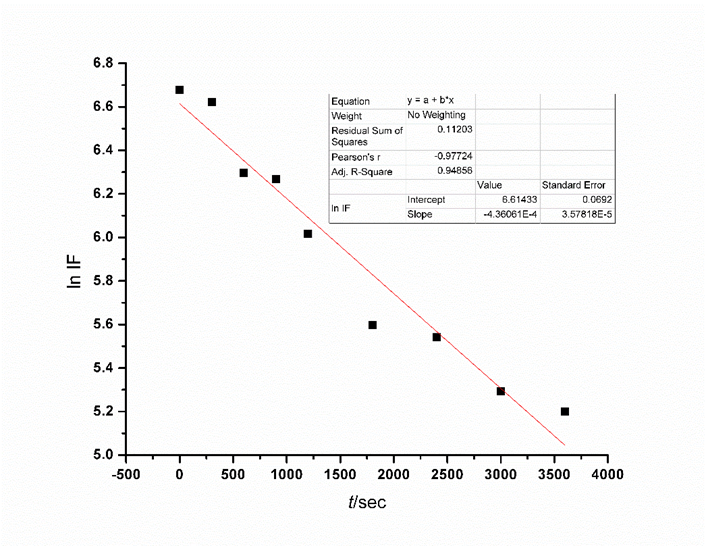

Figure 7 Changes of fluorescence intensity of 1+Cu²⁺ (1:1, v/v) in the presence of 1 eq of other competitive cations [c_total 1.0×10^-4 mol dm^-3 in DMF:H₂O (1:9, v/v)] ( 360 nm, 565 nm).

Figure 8 Job’s Plot of 1 with Cu²⁺ ion in DMF:H₂O (1:9, v/v) (c_total 1.0 x 10^-4 mol dm^-3 ( 360 nm, 565 nm).

A fluorescence titration of the ion over compound 1 was performed to determine the detection limit against the Cu²⁺ ion in aqueous DMF. According to the linear regression of the plotted data (slope/K: 1.7119 10⁸; STDV/: 31.4389) assisted by the 3.3δ/K and 10δ/K equations [69], the LoD and LoQ of compound 1 were discovered at 0.606 µM and 1.836 µM, respectively (Figure 9, Figure S10).

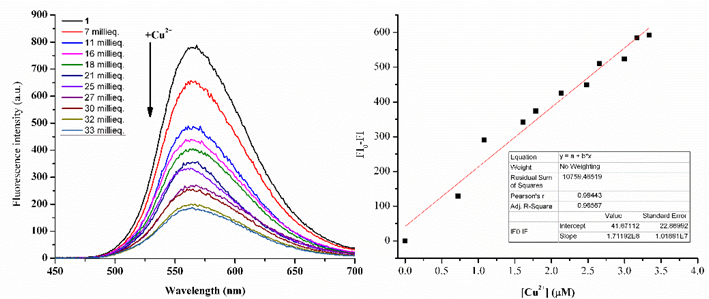

Figure 9 Titration curve of fluorescence of compound 1 (1.0×10^-4 mol dm^-3) in DMF:H₂O (1:9, v/v) vs Cu²⁺ ions at ambient temperature ( 360 nm) (Left). Linear regression of fluorescence degradation at 565 nm as a function of Cu²⁺ concentration (Right).

A high binding constant of the complex in DMF:H₂O (1:9, v/v) was further calculated (3.95×10⁶ M^-1) from the titration experiment of UV/Vis absorbance (Figure 10) and the Benesi-Hildebrand equation [67,68]. The isosbestic point of the titration spectra was barely visible. It was implied that a transformation occurred during the titration, possibly due to the aggregation changes of the involved species [92-94].

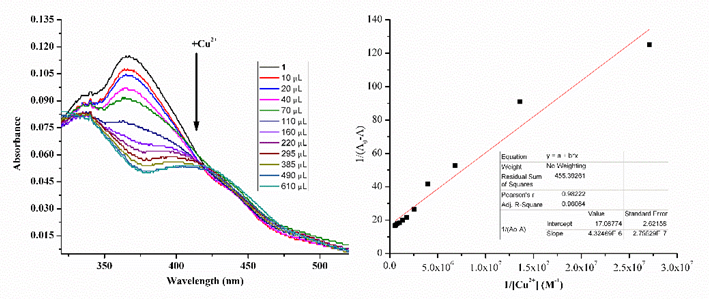

Figure 10 Titration curve of UV absorbances of compound 1 (5×10^-5 mol dm^-3) with Cu²⁺ (1×10^-5 mol dm^-3) (Left), Benesi-Hildebrand plotting data of compound 1 with Cu²⁺ ion in DMF:H₂O (1:9, v/v) at 367 nm (Right).

The reversibility of sensor compound 1 against Cu²⁺ was then investigated using a complexing agent, such as EDTA [70,71] (Figure 11). The fluorescence recovery percentage (FRP) of compound 1 quenched by Cu²⁺ ions showed a decreasing tendency after three cycles. Hence, the chemosensor of compound 1 exhibited partial reversibility against Cu²⁺ ions to a certain degree.

.

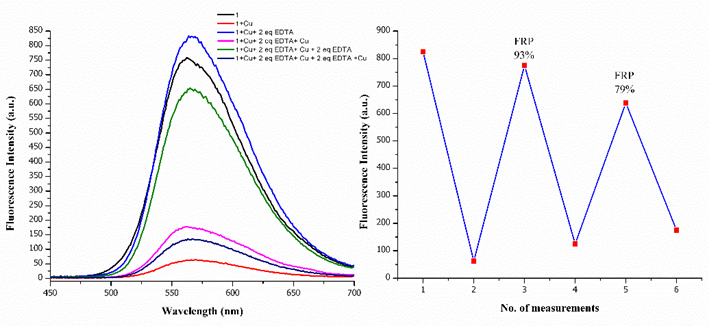

Figure 11 Reversibility experiment of compound 1 (1.0×10^-4 mol dm^-3) in DMF:H₂O (1:9, v/v) against Cu²⁺ ions and EDTA at ambient temperature ( 360 nm) (Left). Fluorescence changes at 565 nm and their fluorescence recovery percentage (FRP) (Right).

The potential application of compound 1 as a paper-based strip probe of Cu²⁺ indicator was further demonstrated at a preliminary step. After immersing a Whatman filter paper into probe compound 1 (1.0×10^-3 mol dm^-3) in DMF:water (1:9, v/v) solution 5 times, compound 1 was absorbed. Afterward, the dry paper immobilized by compound 1 was tested against a Cu²⁺ ion solution at a similar concentration in deionized water and photographed digitally under a UV lamp at 365 nm [95,96]. The observed results showed a bright fluorescence emission of compound 1 before it was dipped into the Cu²⁺ ion solution (Figure 12-Before). Once paper-test of compound 1 was immersed in the Cu²⁺ solution, the bright fluorescence of paper-test compound 1 decreased (Figure 12-After). Therefore, compound 1 will likely be used for the visual and qualitative detection probe of Cu²⁺ metal ions, offering good performance and simplicity without requiring complex equipment. A preliminary stability test of the paper-based sensor conducted over several days at ambient conditions revealed a consistent fluorescence response. However, further studies under controlled humidity and temperature conditions are still necessary to evaluate its long-term performance comprehensively.

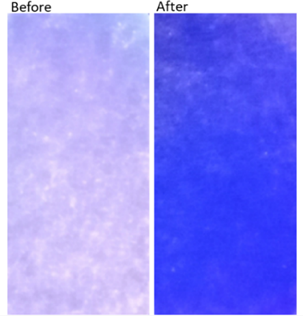

Figure 12 A Whatman filter paper immobilized by compound 1 (1.0×10^-3 mol dm^-3) in DMF:water (1:9, v/v) before and after being tested against Cu²⁺ ions solution (1.0×10^-3 mol dm^-3) in demineralized water. The visualization was under a UV lamp at 365 nm.

Since the response of probe 1 against Cu²⁺ was based on the difference in blue fluorescence intensity, a more rigorous investigation of the paper-based strips is necessary. For instance, a calibrated paper-based strip fluorescence quenching index of 1+Cu²⁺ can be prepared in the presence of individual ion contaminants. Synchronous fluorescence spectroscopy should be a suitable method for the FI calibration of the paper test [97,98]. Employing a digital camera to photograph the prepared strips and determine their RGB values under a 365 nm UV lamp may simplify its application prospects for a real-time qualitative test. The previous finding [27,96,99,100] demonstrated that the fluorescent response of a paper-based sensor can be captured using a standard smartphone camera under 365 nm UV illumination. The RGB values are then extracted and analyzed to convert the visual fluorescence change into a semi-quantitative signal, eliminating the need for complex instrumentation.

According to the aforementioned experimental data, the interaction of compound 1 with the Cu²⁺ ion most probably occurred through inhibition of the IHB with the ion, as proposed in Figure 13. Afterward, an inhibition of ESIPT, which commonly occurred in particular Schiff base derivatives, might be the most rational sensing mechanism [51,71,89]. Therefore, further computational analysis of probe 1 was performed.

Figure 13 A proposed interaction mechanism of 1 with Cu²⁺ ion.

In Silico study of the ESIPT of probe 1 and its interaction with Cu²⁺ ion

Upon a geometry optimization of compound 1, at the B3LYP level of theory and 6-311g+(d,p) basis set, positive vibrational frequencies (IR) of compound 1 were recorded (Figure S11). Thus, a minimum state of compound 1, which indicated a stable form, was achieved (Figure 14). Some representative moieties, namely as stretching of -OH, C=N, and aromatic C=C at 3,250, 1,642, and 1,578 cm^-1, respectively, emerged. The calculated values of compound 1 deviated by 31 - 107 cm⁻¹, which is within acceptable computational margins. In addition, further calculation verification was achieved by comparison of the computed UV/Vis spectra profile of the 1-enol and 1-keto with the measured ones (Figure S12). Overall, the calculation method demonstrated accuracy that closely approximated the experimental results, providing reasonable verification of its validity.

To confirm the ESIPT process of compound 1, which leads to the isomerization of enol-keto, we examined the optimized structures of 1-enol and 1-keto in further detail. Since intramolecular hydrogen bonding (IHB) involves the bonds at the O₁₉, H₂₀, and N₂₁ atoms (Figure 14), changes in bond length and angle upon excitation should be observed [101,102]. It was implied that bond elongation of the O₁₉-H₂₀ of 1-E (0.031 Å) was distinctively revealed upon excitation to S₁. On the other hand, a bond shortening was also observed at the H₂₀-N₂₁ of 1-E (0.116 Å). In addition, a widening angle (20 ) of O₁₉-H₂₀---N₂₁ close to 180° was also assigned, along with the bond length change. For comparison, analogous changes were also demonstrated by the 1-K upon excitation (Figure 14, Table S1). Consequently, an IHB of phenol O₁₉-H₂₀ toward imine N₂₁ was strongly enhanced upon excitation. As the 1-enol was more stable than the 1-keto by 3.29 kcal/mol in S₀ and 0.658 kcal/mol in S₁ (Table S2), the 1-enol form might have dominantly occurred at the S₁ state.

Further analysis of the frontier molecular orbital (FMO) toward 1 enol/E and keto/K (Figure 15) highlighted the presence of an enol-keto tautomerism in compound 1. The study revealed that 1-keto (3.21 eV) had a lower energy band-gap than 1-enol (3.38 eV). A redistribution of 1-E and 1-K electronic density upon excitation was also observed. The electron density of the N₂₁ and O₁₉ at LUMO of 1-E* and 1-K*, respectively, was increased. These changes enhanced the proton acceptor capability of the related atoms at the S₁ state. Since the LUMO energy of 1-K* was also, relatively lower than the 1-E*, the ESIPT was finally favorable to occur, as it was accordingly found in the other typical Schiff base [49,51,53,103]. On the other hand, when the Cu²⁺ ion was chelated by compound 1, the IHB was replaced by the ions, and the keto-enol tautomerization was restricted (Figure S13). Finally, the original inhibited photoinduced electron transfer was released, and the fluorescence of compound 1 was quenched irreversibly. Overall, according to the computational calculation of 1-enol, 1-keto, and their chelated complex, the ESIPT phenomena and the interaction mechanism were further verified theoretically, and the result aligned with similar findings reported elsewhere [14,53,58,89]. Employing advanced techniques like transient absorption spectroscopy would offer additional confirmation of the ESIPT mechanism and allow for precise determination of its kinetic parameters [104,105].

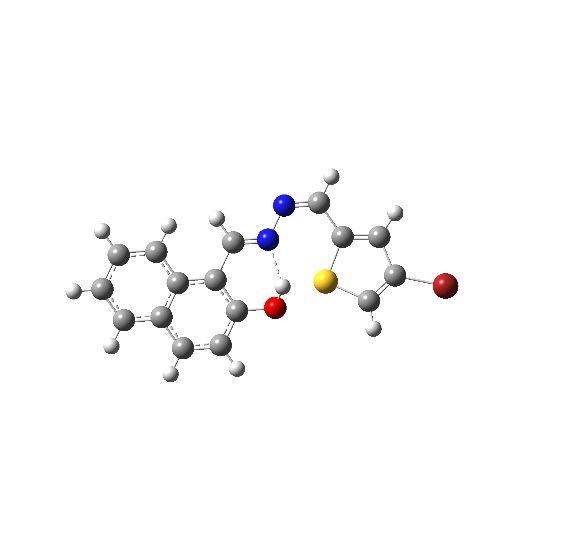

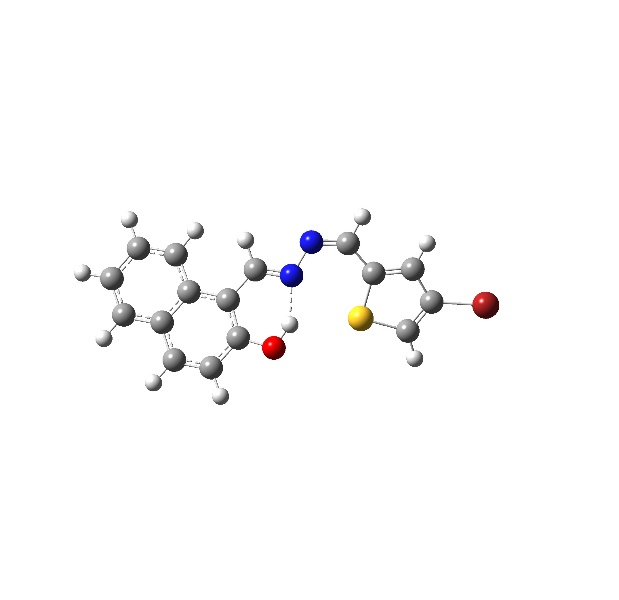

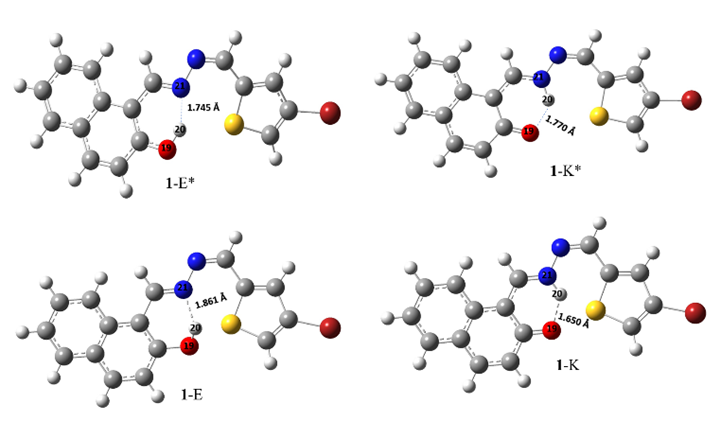

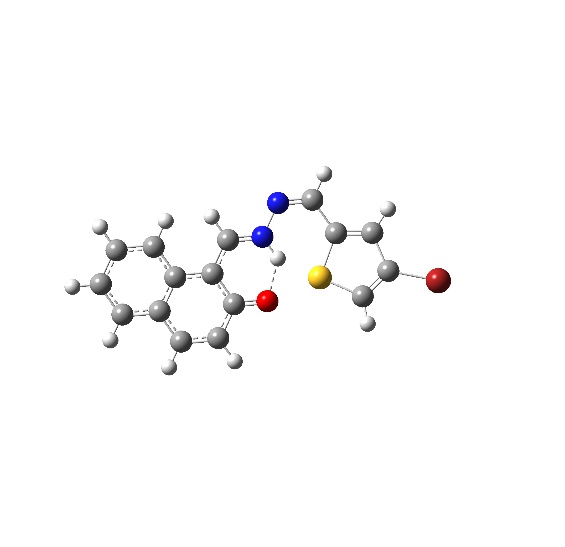

Figure 14 Optimized geometry structures of 1-E and 1-K at the states of S₀ and S₁.

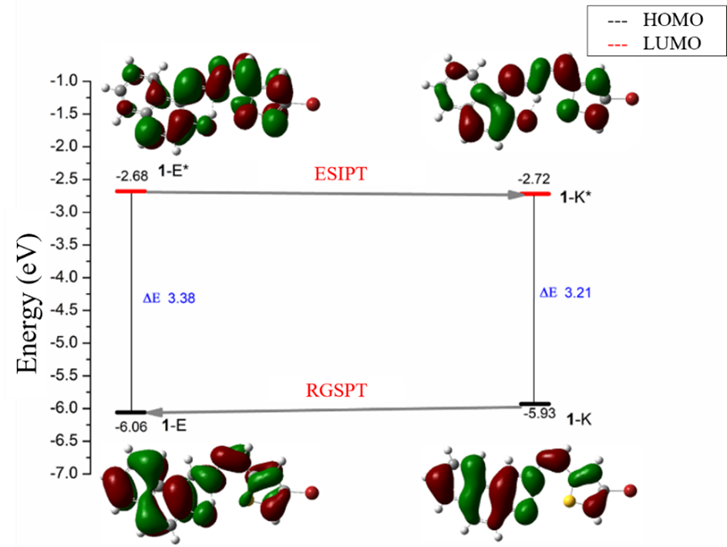

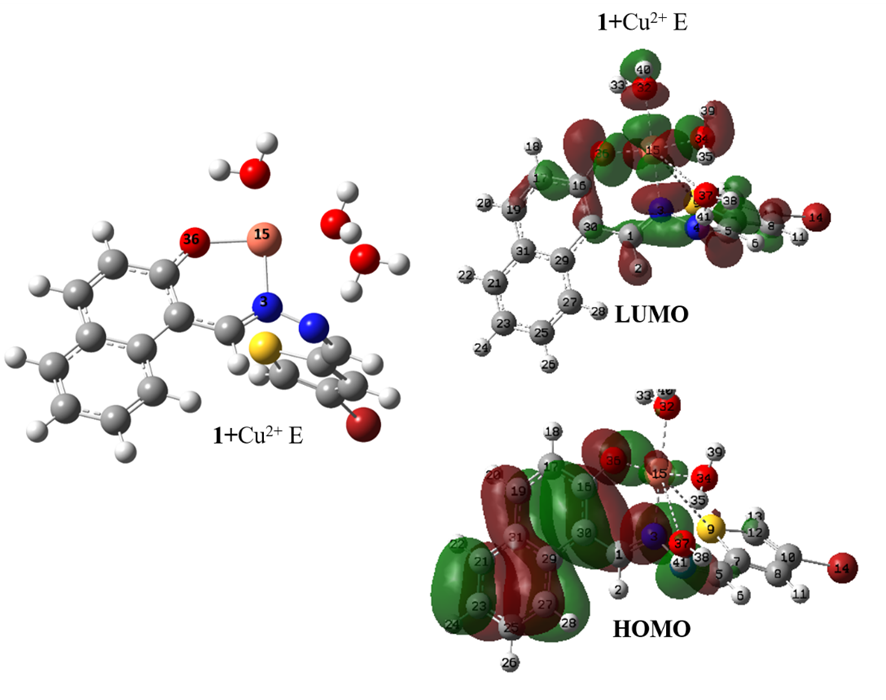

Figure 15 Calculated frontier molecular orbital of enol-keto of 1 and its energy band-gap.

Conclusions

A Novel AIE-ESIPT-based chemosensor of 1-((((4-bromothiophen-2-yl)methylene)hydrazineylidene)methyl) naphthalen-2-ol (1) was successfully synthesized and characterized based on the spectroscopic analysis. Compound 1 demonstrated a limited selectivity on-off sensor against Cu²⁺ ion in DMF:H₂O (1:9, v/v) at 1:1 molar ratio binding mode, with the LoD and LoQ being 0.606 µM and 1.836 µM. Upon experimental and computational study, sensor 1 was confirmed to undergo an ESIPT process, followed by inhibition against Cu²⁺ ions. Therefore, compound 1 might be further applied to detect Cu²⁺ ions in an aqueous system under particular conditions.
