Trends Sci. 2026; 23(8): 12650

Introduction

Zeolites are crystalline microporous framework materials widely used in catalysis, adsorption, and separation due to their uniform pore size distribution, ion exchange capacity, structural tunability can be tailored for specific applications [1-4]. Furthermore, performance is often enhanced by introducing heteroatom or metal species to introduce additional active sites and modify surface heterogeneity [5]. Among all-silica zeolite, silicalite-1 is particularly attractive for treating organic pollutants due to its high thermal stability and hydrophobicity, and tunable surface properties, which favor the uptake of organic molecules from aqueous media [6].

Silicalite-1 is commonly synthesized hydrothermally using tetraethyl orthosilicate (TEOS) and tetra propylammonium (TPA) as the structure-directing agent [7]. However, the cost and non-renewable environment of TEOS restrict the sustainability and large-scale feasibility of silicalite-1 production. Consequently, waste product has emerged as an alternative feedstock for synthesizing porous materials, offering potential cost reduction and environmental benefits through waste utilization [8]. In this context, geothermal sludge formed from silica scaling and accumulated in geothermal power plants that consists of 165 ton per month especially at the Dieng power plant in Indonesia while its utilization is minimal. The solid residue from geothermal sludge contains 90-98% amorphous silica, which serves as a suitable source material for the synthesis of zeolite [9]. Ilman et al. [10] reported that geothermal sludge contains up to 95.70 wt% SiO₂, accompanied by impurities such as Fe₂O₃, CaO, K₂O, TiO₂, Na, Cl, and others. These impurities can interfere with zeolite crystallization and must be controlled to enable reliable synthesis and reproducible properties. Acid leaching is a practical pre-treatment to reduce these impurities and enrich reactive silica, among different acids, HCl is frequently reported as effective for dissolving metal contaminants while preserving the silica structure [11]. Importantly, converting geothermal sludge into a reactive silica precursor therefore represents a promising route to produce value added zeolitic materials while reducing disposal burdens and dependence on commercial silica sources [12].

In parallel, Fe doped into zeolite framework has attracted attention due to iron is abundant, relatively low in toxicity, and can introduce additional adsorption sites and surface heterogeneity relevant to environmental remediation [13]. Zhai et al. used TEOS as silica precursor, successfully synthesized iron containing hollow MFI zeolites by hydrothermal method [14]. Guo et al. [15] reported a hydrothermal method to successfully synthesize encapsulated Fe nano catalyst inside silicalite-1 and exhibited significantly improved catalytic activity and reusability in the catalytic degradation process of methylene blue. Radoor et al. [16] reported synthesis of silicalite-1 for adsorption MB using TEOS as silica precursor can exhibit 86% removal efficiency even after 6 adsorption-desorption cycle. Nevertheless, most Fe-doped silicalite-1 reported to date still relies on commercial silica precursors, limiting the sustainability and economic attractiveness of scale-up. Moreover, although waste by product (e.g., fly ash) has been used to produce silicalite-1 [17], the direct use of geothermal sludge for synthesizing Fe-doped silicalite-1 remains insufficiently explored, and the influence of Fe loading on crystallization behavior, textural development, and adsorption performance has not been systematically established. We hypothesize that acid leaching of geothermal sludge produces a sufficiently reactive and low impurity silica source to enable reproducible MFI-type silicalite-1 crystallization. We further propose that Fe addition during synthesis modifies the silica network by increasing surface heterogeneity, creating Fe-associated sites that improve the accessibility of adsorption sites, thereby enhancing methylene blue uptake.

Accordingly, this study aims to synthesize silicalite-1 and Fe-doped silicalite-1 using acid-leached geothermal sludge as the primary silica precursor via hydrothermal crystallization, quantify the effects of Fe loading on phase composition/ crystallinity, evaluate methylene blue adsorption performance using experimental uptake, isotherm and kinetic parameters. This work is expected to reduce dependence on TEOS, lowers precursor cost, and mitigates geothermal waste disposal, offering a more sustainable and scalable route to adsorbents for dye contaminated wastewater treatment.

Materials and methods

Materials

The materials used in this study included geothermal sludge obtained from the Indonesian Geothermal Plant, hydrochloric acid (HCl, Smartlab, 37%), tetrapropylammonium bromide (TPABr, Merck, 98%), iron(III) nitrate nonahydrate (Fe(NO₃)₃·9H₂O, Merck, 98%), methylene blue (C₁₆H₁₈ClN₃S, Merck), sodium hydroxide (NaOH, Sigma-Aldrich, 97%), and deionized water.

Silica extraction from geothermal sludge

The 4 g of geothermal sludge obtained from Indonesia geothermal plant was first oven-dried at 105 °C overnight and then ground using a mortar to obtain a fine powder. The dried sludge was carried out to acid leaching using 40 mL of 2 M HCl at 90 °C for 5 h under continuous stirring at 350 rpm in a fume hood to remove metal impurities such as Fe₂O₃, K₂O, and CaO. The solid residue was separated by filtration, thoroughly washed with deionized water until neutral pH was reached, and then dried at 105 °C overnight. The purified material was subsequently dissolved in 20 mL of 6 M NaOH solution and stirred at 350 rpm for 6 h at 90 °C to extract silicate species. The resulting sodium silicate solution was subsequently used as the silica precursor for zeolite synthesis.

Preparation for silica sol

Silica sol was prepared from the SiO₂ extracted solution obtained via alkaline extraction of geothermal sludge. First, 4.32 mL of sodium silicate solution was filtered to remove any residual solid impurities. The pH of the filtration was then adjusted to 1 by adding 8 mL of 2 M HCl under continuous stirring at 350 rpm to induce silica gel formation. The resulting gel was aged for 36 h at 75 °C to promote polymerization and particle growth. To prepare the silica sol, 2.16 mL of SiO₂ extract was diluted in 25 mL of deionized water, followed by the addition of 1.17 g of the as-prepared silica gel. The mixture was stirred at 350 rpm at ambient temperature for 3 h to ensure homogeneity. The suspension was subsequently transferred to a Teflon-lined autoclave and hydrothermally treated at 65 °C for 24 h to obtain a stable silica sol. The resulting sol was used as the silica precursor for the hydrothermal synthesis of Fe-doped silicalite-1.

Hydrothermal synthesis of Fe-doped silicalite-1

Fe-doped silicalite-1 was synthesized via a hydrothermal method reported by Yang et al. [7], with modifications. The synthesis gel composition was 1.0SiO₂: 0.04TPABr: 0.2Na₂O: 50H₂O: xFe (x = 0.002, 0.005 and 0.014 mol). First, 0.326 g of tetra propylammonium bromide (TPABr) was dissolved in 16 mL of deionized water. Separately, the required amount of Fe(NO₃)₃·9H₂O was dissolved in 10 mL of deionized water until a clear and homogeneous solution was obtained. The silica sol was added to the TPABr solution, followed by the dropwise addition of the Fe(NO₃)₃·9H₂O solution under continuous stirring at 350 rpm. The pH of the resulting mixture was monitored and adjusted to 10 by adding 1 M HCl. The gel was stirred for 3 h at ambient temperature to ensure homogeneity, then transferred to a Teflon-lined stainless-steel autoclave and aged for 13 h. The hydrothermal crystallization was carried out at 150 °C for 24 h. After crystallization, the solid product was collected by filtration, thoroughly washed with deionized water until pH neutral, and dried at 75 °C for 24 h. The dried samples were calcined at 550 °C for 6 h under N₂ atmosphere to remove the organic template and obtain the final Fe@Sx materials. The Fe content was varied at molar ratios of 0.002, 0.005, 0.014 and the resulting samples were labelled as Fe@S-2 (0.002), Fe@S-5 (0.005), and Fe@S-14 (0.014), respectively. Silicalite-1 synthesized under the same conditions without Fe addition was denoted as S-1. A schematic illustration of the Fe-doped silicalite-1 synthesis was shown in Figure 1.

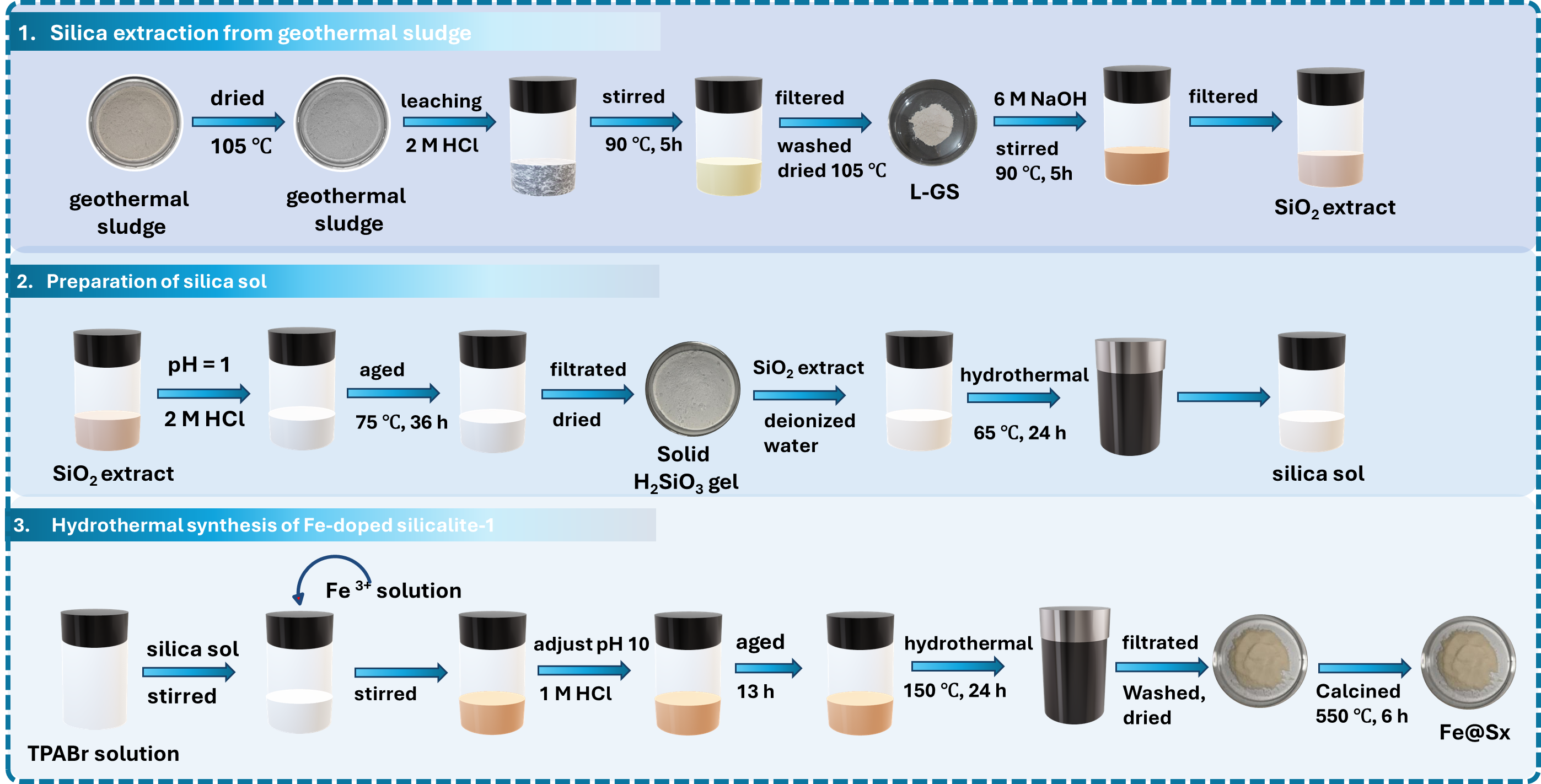

Figure 1 Schematic illustrations of synthesis of Fe-doped silicalite-1 from geothermal sludge.

Characterization

The structural, chemical, and morphological properties of the synthesized materials were analyzed using several characterization techniques. The elemental composition of the raw geothermal sludge was determined using X-ray fluorescence (XRF, PANalytical type Prodigi), with accelerating voltage 30 kV. Crystal phase and crystallinity structure of the synthesized samples was characterized by X-ray diffraction (XRD) [18]. The XRD analysis was performed using XRD PANalytical under Cu Kα irradiation (λ = 1.5406 Å) with the diffraction angle of 2θ = 10° - 65° and accelerating voltage and current of 40 kV and 15 mA, respectively. Fourier-transform infrared spectroscopy using Shimadzu IRAFFINITY-s at 400 - 4,000 cm^–1 using conventional KBr pellets to identify functional groups [19,20]. The surface morphology and elemental distribution were examined by field-emission scanning electron microscopy coupled with energy-dispersive X-ray spectroscopy (FESEM-EDX) Hitachi Regulus 8220 at 1.5 kV [21].  The surface area of the materials was measured using MB adsorption method as follows Eqs. (1) [22,23].

Equation of surface area by MB adsorption:

where S is the surface area m² g⁻¹, x/m is the amount of MB adsorbed per gram of adsorbent g g⁻¹, N is Avogadro’s number (6.02×10²³ particle/mol), is the size of a single MB molecule (1.97×10⁻¹⁸), and Mw is molecular weight MB (320.5 g mol⁻¹).

Adsorption experiment

The adsorption performance of the samples was evaluated using methylene blue (MB) as an organic dye. Typically, 0.03 g of adsorbent was added to 50 mL of an MB solution with varying concentration of MB 10, 20, 30 and 40 mg L⁻¹ then stirred for 60 min at 350 rpm. During the adsorption process, 4 mL of the solution was taken every 15 min up to 60 min. The MB concentration was determined using a UV-Vis spectrophotometer at a wavelength of 655 nm. The adsorption capacity (qₜ) and removal efficiency (R%) were calculated using standard mass-balance equations. The kinetic data were fitted using pseudo-first order and pseudo-second-order models, while adsorption isotherms were analyzed using Langmuir and Freundlich models to explain the adsorption mechanism and surface behaviour. The pseudo-first order and pseudo-second order models as follows: Eqs. (2) and (3), respectively.

where is the adsorption capacity at time (min) in mg g⁻¹, and is the adsorption capacity at equilibrium (mg g⁻¹). The rate constants and represent the reaction rate constants for the pseudo-first order (PFO) and pseudo-second order (PSO) kinetic models, respectively. The non-linear forms of the Langmuir and Freundlich isotherm models can be expressed in Eqs. (4) and (5), respectively.

Equation of Langmuir isotherm model

where is the adsorption capacity at equilibrium (mg g⁻¹), and represents the maximum adsorption capacity. is the Langmuir isotherm constant related to adsorption affinity, while is the Freundlich isotherm constant indicating adsorption capacity. The non-linear Langmuir and Freundlich isotherm plots are obtained by plotting the equilibrium concentration ( ) on the x-axis and the adsorption capacity ( ) on the y-axis.

Results and discussion

Identification of chemical composition of the geothermal sludge

The X-ray fluorescence analysis confirmed that SiO₂ was considered the primary component at around 85 wt%, while other metal oxides such as Al₂O₃, P₂O₅, CaO, Fe₂O₃, and K₂O were present in smaller quantities at 1 - 5 wt%. To improve silica purity and remove metal impurities, the geothermal sludge was subjected to acid leaching using 2 M HCl. Hydrochloric acid was selected due to it more efficiently dissolves metal contaminants than acids such as HNO₃, H₂SO₄, and H₃PO₄ [24]. The resulting filtrate had a yellowish-brown color, indicating effective leaching of metal impurities. The leached powder contained 93.9 wt% SiO₂ and was subsequently used as a high-purity silica precursor for zeolite synthesis as detailed in Table 1.

Table 1 Chemical composition of the geothermal sludge and acid treated sample.

Structural, morphological, and chemical properties

The XRD pattern of S-1 exhibits the characteristic peaks of the silicalite-1 at 2θ = 7.54°, 8.58°, 22.94°, 23.54°, and 24.04°, corresponding to the (101), (202), (501), (303), and (133) facets, proving the well-crystallized MFI framework [25,26]. The peaks observed at (101) and (202) facets indicate representative of pentasil units oriented parallel to the ac-plane, which underpin the linear and zig-zag channels system of the MFI structure. The diffraction pattern indicates a long-range ordering of the interconnected SiO₄ tetrahedral. Meanwhile, the diffraction peaks at 22.94°, 23.65°, and 24.04° indexed to the (501), (303), and (133) facets are commonly attributed to the local arrangement of SiO₄ tetrahedra forming 10-membered ring and channel intersections within the 3-dimensional zeolitic structure [27]. The XRD pattern of the Fe@S-2 and Fe@S-5 showed a similar diffraction to S-1, indicating that the MFI framework is largely preserved after Fe loading. The addition of Fe³⁺ into the silica framework is attributed to isomorphous substitution of Si⁴⁺, which can occur without disrupting the MFI framework. The diffraction peaks in Fe@S-2 and Fe@S-5 shifted, indicating a uniform distribution of the Fe species within the MFI structure. In the Fe@S-14, significant structural and phase changes were observed through a broadening of the diffraction peak at 2θ = 23°. This result indicates the formation of an amorphous phase along with the destruction of the MFI structure in the material. The excessive Fe species can inhibit the nucleation and crystal growth of the MFI structure during the hydrothermal process. The XRD pattern indicates that the crystallinity and stability of the Fe@Sx are considerably affected by the Fe loading and its distribution within the MFI structure.

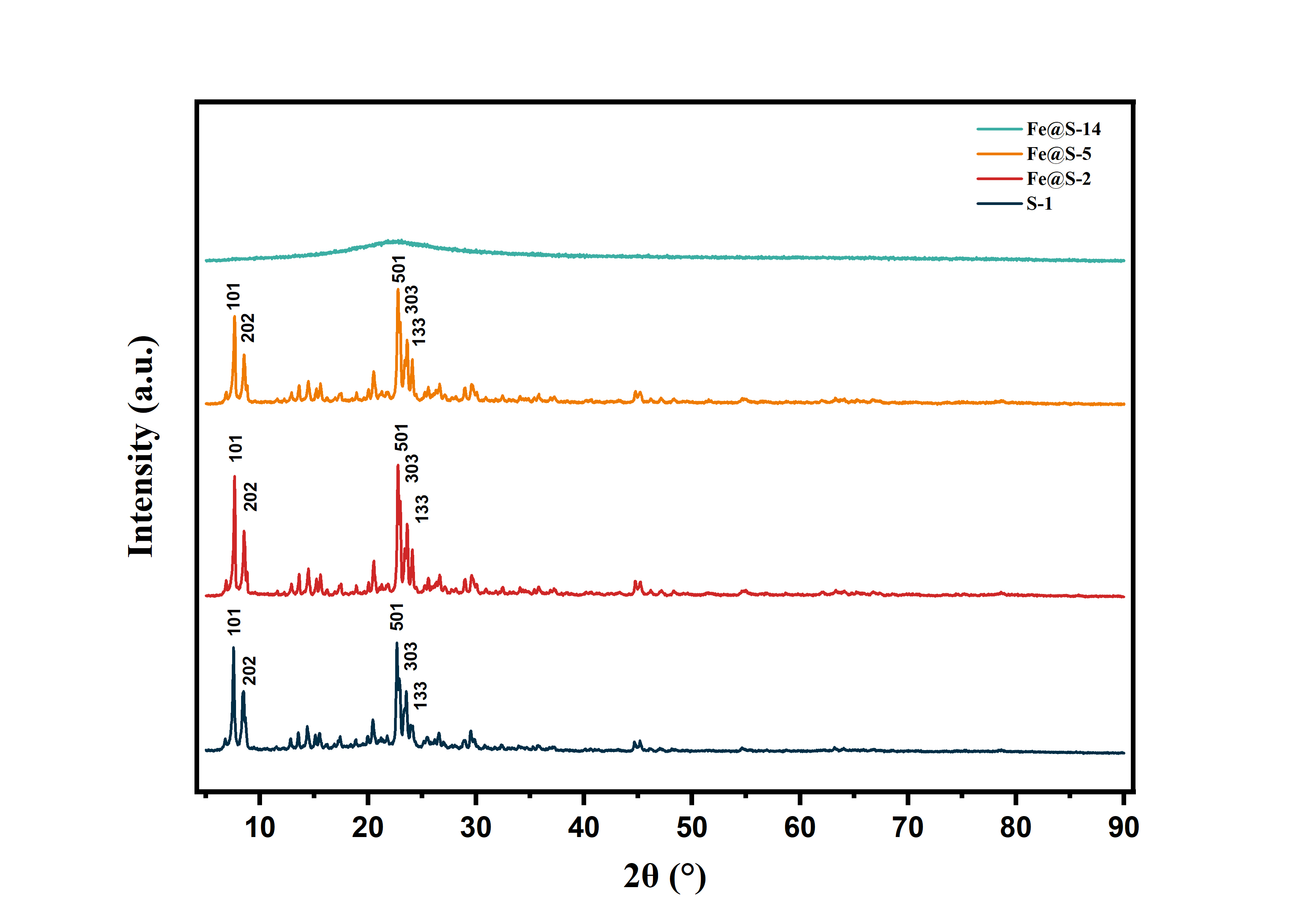

Figure 2 XRD patterns of silicalite-1 synthesized from geothermal sludge with different Fe molar ratio.

Table 2 summarizes the quantitative XRD parameters of samples. At low Fe loading, the characteristic MFI peaks are preserved, while the relative crystallinity decreases slightly to 95.18%, indicating a modest loss of long-range structural order. The (101) and (303) peaks shift toward higher 2θ value, which is typically associated with lattice distortion. Notably, the FWHM of Fe@S-2 values remain small, suggesting that loading Fe does not cause significant peak broadening and that the MFI crystalline domains remain relatively coherent. At a higher Fe loading (Fe@S-5), the relative crystallinity decreases to 78.510% (e.g., FWHM of the (101) reflection increases to 0.163°), indicating increased structural disorder.

Table 2 Relative crystallinity and XRD peak parameters (2θ, Δ2θ, and FWHM) for the (101) and (303) facets of samples.

The FTIR spectra of the samples are shown in Figure 3. The vibration band at 450 cm^–1 is assigned to the Si–O–Si bending vibration. The peak observed at 550 cm^–1 is attributed to the double-5 ring vibration which is a characteristic band of the MFI framework, and it is not observed for Fe@S-14 [28]. Furthermore, the vibration peak at 800 cm^–1 is assigned to the symmetric stretching of Si–O–Si in the outer SiO₄ tetrahedron [29]. The peak at 1,108 cm^–1 is associated with the asymmetric stretching vibration of Si–O–Si in the inner SiO₄ tetrahedron [30,31], while the nearby band at ~1,100 cm^–1 indicates the presence of Fe–O–Si bond formed by the Fe species into the silica framework [32]. The vibration band at 1,224 cm^–1 is assigned to Si–O–Si asymmetric stretching in the outer SiO₄ tetrahedron with the condensed silica network [33]. Moreover, aboard vibration band at 3,400 - 3,500 cm^–1 is attributed to the stretching vibration of hydroxyl group (–OH), originating from adsorbed water molecules or surface silanol (Si–OH) group. According to IR analysis there are no absorption bands corresponding to iron oxide phases which may be due to low iron content in Fe@S-2 and Fe@S-5 samples.

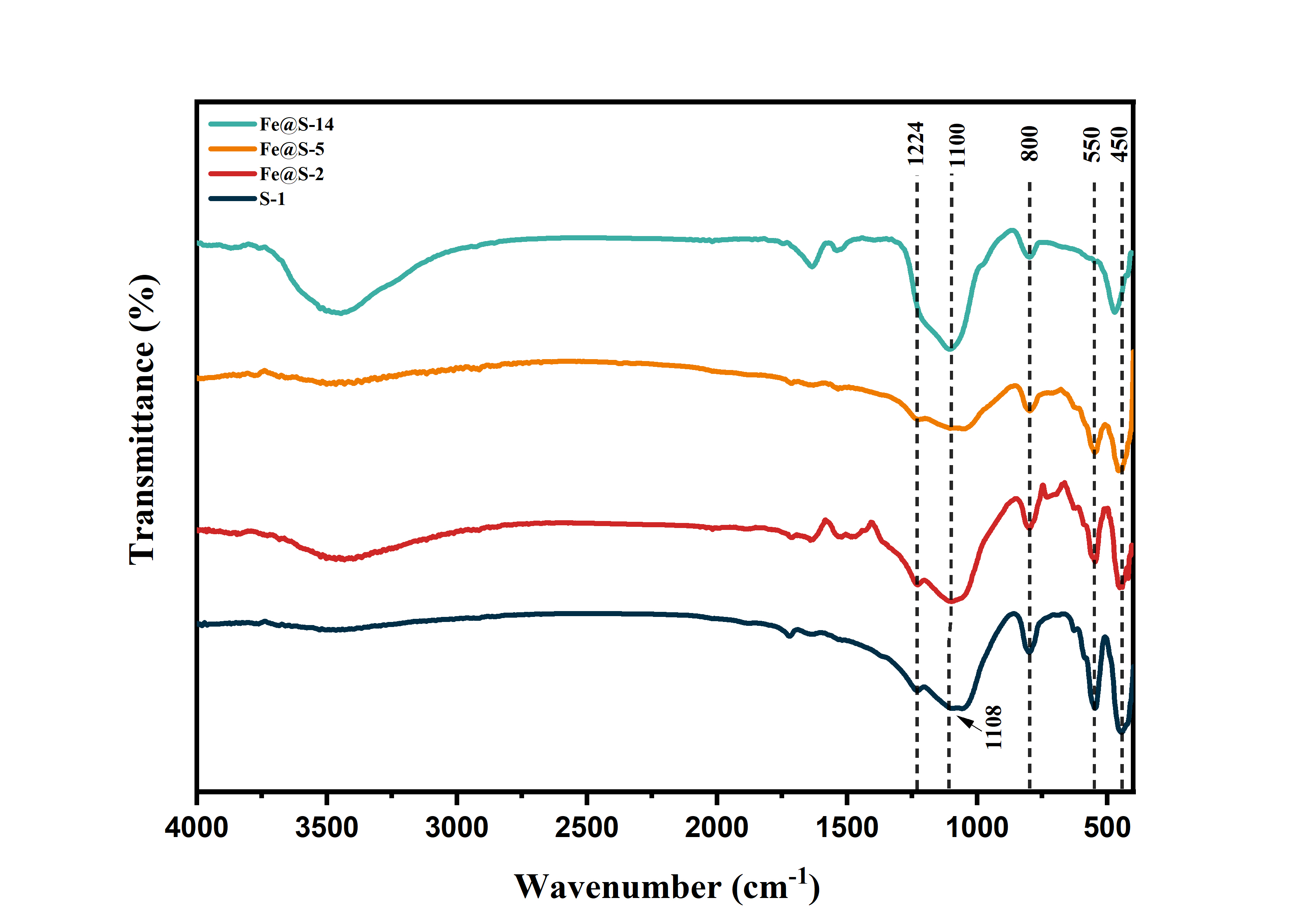

Figure 3 FTIR spectra of S-1 and Fe@Sx synthesized with different Fe molar ratios.

Figure 4 shows the surface morphology and elemental distribution of the Fe@S-5. The Fe@S-5 sample exhibited a typical spherical-like crystal shape, with morphology similar to the structure of MFI-1 type zeolites. This morphology indicates uniform crystal growth and a high structural order, consistent with the XRD results. The addition of Fe led to the formation of spherical morphology with slight surface irregularities due to localized lattice strain induced by the substitution of Fe within the MFI framework. The Fe@S-5 shows a uniform monocrystalline structure with an average particle diameter of 2.8 µm in Figure 5. The distribution mapping of elements confirmed the presence of Si, O, and Fe as shown in Figures 4(b) - 4(f). The further elemental mapping exhibits a uniform distribution of Si and O. Additionally, the elemental distribution of the Fe element in Fe@S-5 appears as a dispersed red color, indicating a highly dispersed state and a uniform distribution of iron species in the sample [34].

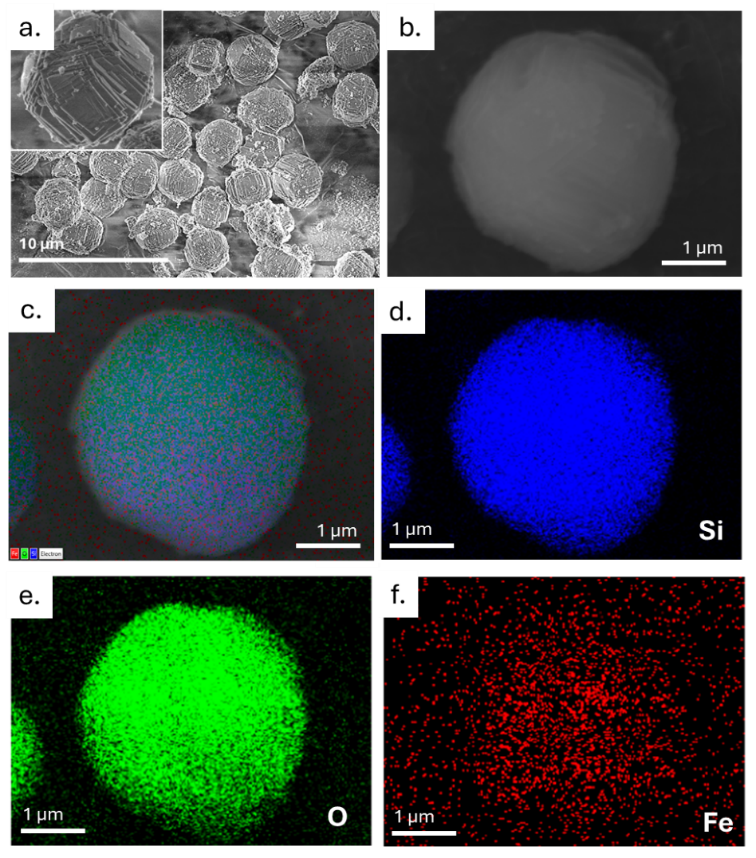

Figure 4 (a) FESEM image of the Fe@S-5; (b) elemental mapping of Fe@silicalite-1 0.005 mol (c) all elements; (d) silicon (Si); (e) oxygen (O); (f) iron (Fe).

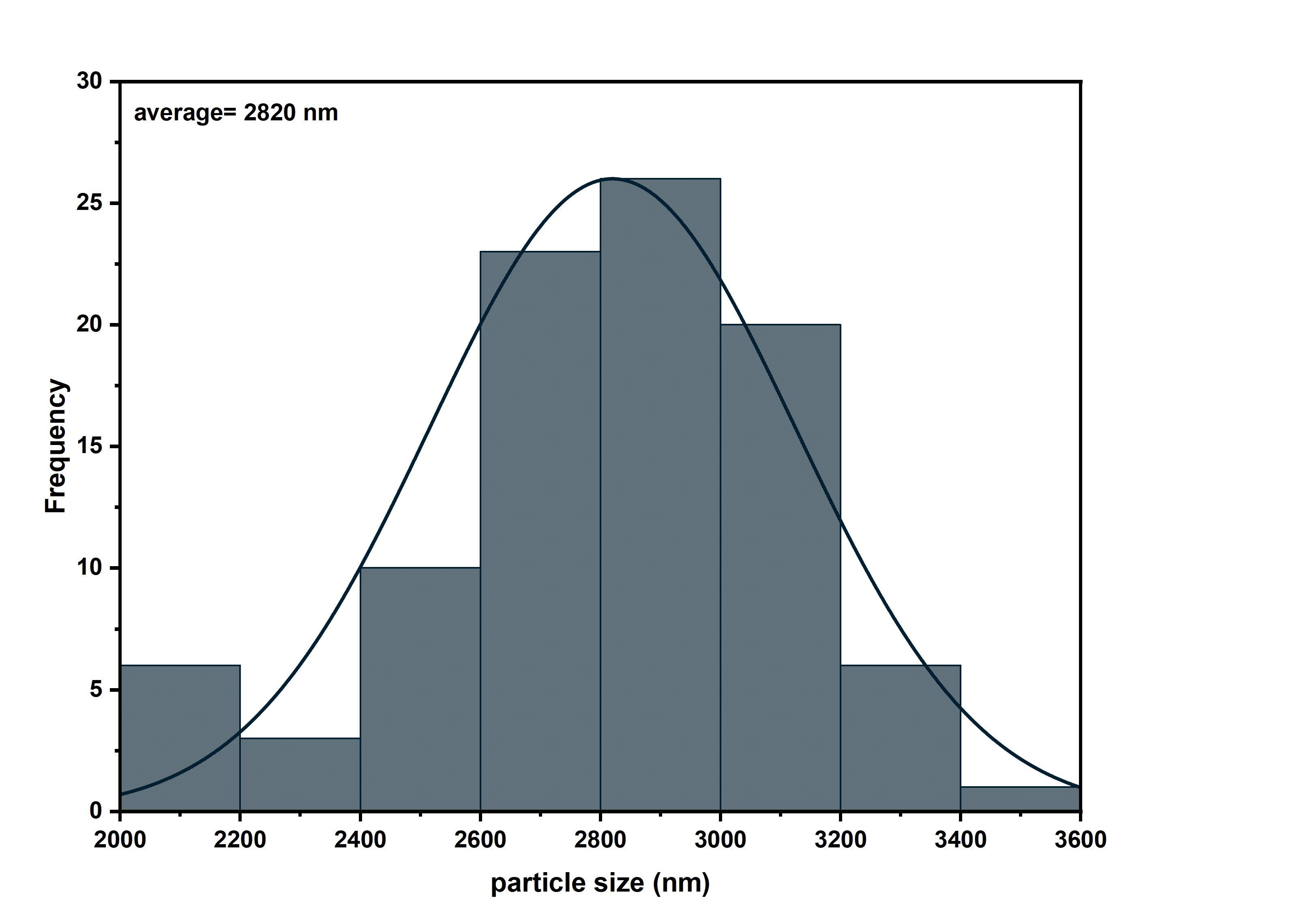

Figure 5 Particle size distribution histogram of Fe@S-5.

The surface area of samples was evaluated using the methylene blue (MB) adsorption method. The calculated specific surface area values are summarized in Table 3.

Table 3 Surface area of Fe@S-14, Fe@S-5, Fe@S-2 and S-1 samples.

Based on the data presented in Table 3, the addition of Fe into the S-1 structure significantly affects the surface area of ​​the material. The S-1 exhibits external surface area of ​​149.7 m² g⁻¹, which is consistent with the external surface area reported for silicalite-1 (150 m² g⁻¹) by Liu et al. [35]. In comparison, Fe@S-2 and Fe@S-5 show slightly higher external surface area of 154 and 150 m² g⁻¹, respectively. This trend indicates that Fe associated with the silicate structure may increase surface heterogeneity and provide additional sites for dye adsorption [36]. Meanwhile, the Fe@S-14 exhibits a higher surface area of 174 m² g⁻¹ and it is supported by XRD data that shows an amorphous phase. The amorphous phase typically has more open and irregular pore structure, which facilitates the diffusion of methylene blue molecules into the porous network [37,38].

Adsorption experiment

Effect of initial concentration of methylene blue

In order to evaluate the effect of the initial dye concentration, methylene blue solutions of 10 - 40 mg L⁻¹ were contacted with the adsorbents for 60 min as presented in Figure 6. The pure S-1 sample shown in Figure 6(a), exhibits the lowest adsorption capacity of 7.9 mg g⁻¹ at 40 mg L⁻¹ after 60 min, which is reasonable for all silica relatively hydrophobic MFI surface with limited negatively charged sites available for binding a cationic dye [39]. For silica-based adsorbents, MB adsorption is strongly promoted by deprotonated silanol groups (SiO^–), which provide electrostatic attraction and hydrogen-bonding interactions; therefore, a low accessibility of such sites can limit uptake [40]. Meanwhile, Fe@S-2 and Fe@S-5 exhibit slightly higher adsorption capacities of 9.8 and 8.7 mg g⁻¹ at 40 mg L⁻¹ respectively shown in Figure 6 (b,c), suggesting that the formation of defect increase the surface heterogeneity [16]. In contrast, the Fe@S-14 shows the highest adsorption capacity of 46 mg g⁻¹ at 40 mg L⁻¹ shown in Figure 6(d). This enhancement is consistent with the pronounced crystallinity loss/partial amorphization indicated by XRD, which can generate a more open and irregular pore channel and reduce mass-transfer limitations, thereby facilitating molecular diffusion and improving access to available adsorption sites [41,42].

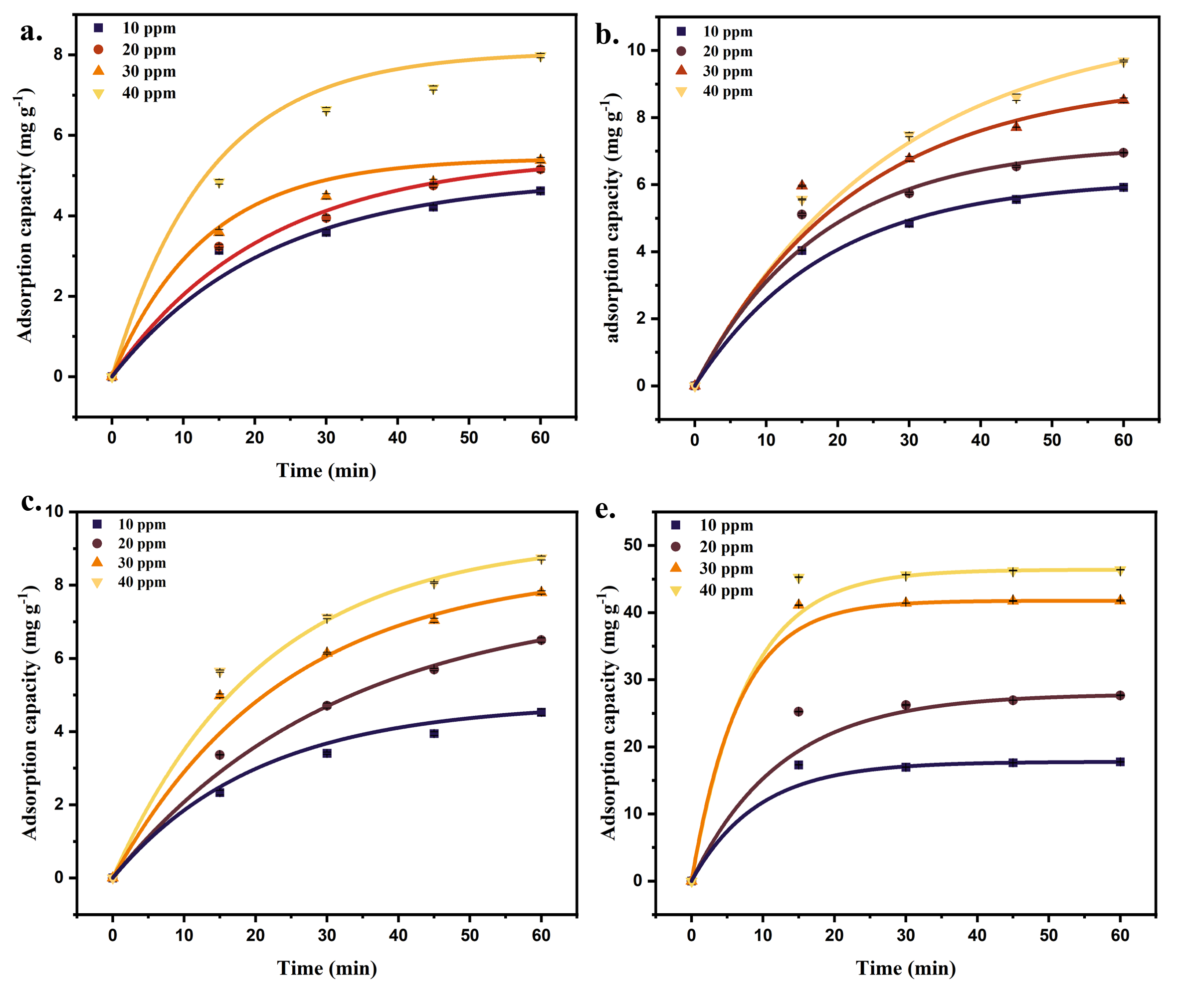

Figure 6 Adsorption capacity of a) S-1, b) Fe@S-2, c) Fe@S-5 and d) Fe@S-14.

Adsorption kinetics

To investigate the adsorption kinetics of methylene blue, the experimental data were fitted using nonlinear pseudo-first order (PFO) and pseudo-second order (PSO) models [43]. Kinetic experiments were conducted over contact time of 0 - 60 min at an initial MB concentration of 30 mg L⁻¹, as shown in Figure 7. The nonlinear fitting results and kinetic parameters are summarized in Table 4. Based on the analysis of the adsorption kinetic models, the adsorption process of methylene blue on S-1, Fe@S-2, Fe@S-5, and Fe@S-14 are more appropriately described by PSO because it has a higher correlation value R² than the PFO model. Notably, Fe@S-14 showed an excellent fit to the PSO model (R² = 0.999), indicating that the overall adsorption rate is strongly governed by the availability of adsorption sites and their interactions with MB. Following common interpretation of the PSO model, this behavior is often associated with chemisorption-controlled kinetics [44].

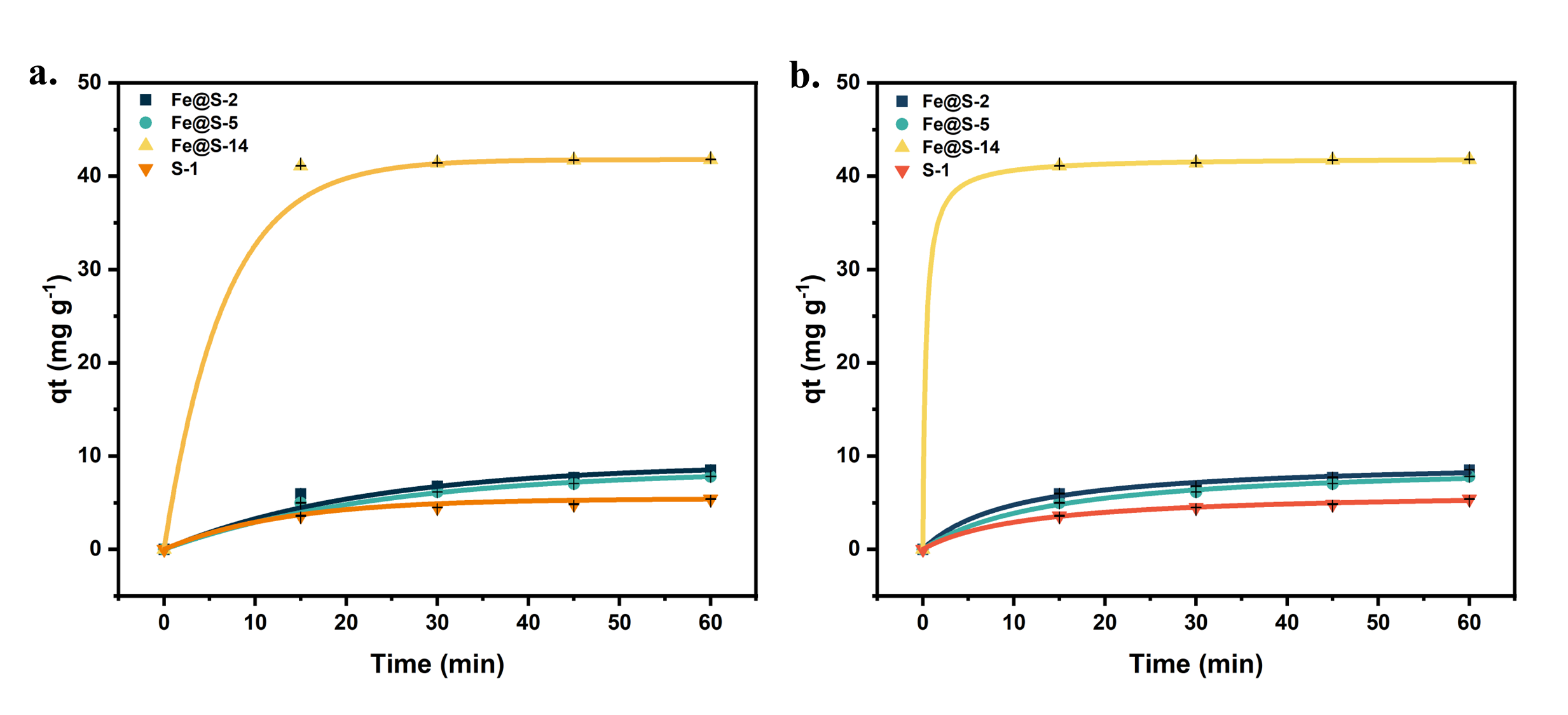

Figure 7 Kinetic models a) pseudo-first order and b) pseudo-second order.

A higher PSO rate constant (K₂) generally indicates that the adsorption process occurs more rapidly, aligning with the corresponding reaction model. The Fe@S-14 exhibits the highest K₂ value of 0.072 g mg⁻¹ min⁻¹, indicating a rapid adsorption kinetics. In comparison, S-1, Fe@S-2 and Fe@S-5 show lower K₂ value of 0.014, 0.010 and 0.007 g mg⁻¹ min⁻¹, respectively. Consistent with this trend, Fe@S-14 also delivers the highest equilibrium adsorption capacity (q_e) at 41.988 mg g⁻¹, followed by Fe@S-2, Fe@S-5, S-1 with values of 9.602, 9.430 and 6.261 mg g⁻¹, respectively. Methylene blue adsorption typically proceeds via an initial rapid uptake on the external surface, followed by a slower stage controlled by intra particle diffusion into accessible pore. Since MB is cationic dye, its adsorption can be promoted by electrostatic interactions with negatively charged surface sites, such as deprotonated silanol groups (SiO₂^–). It shows that the adsorption process depends not only on the concentration of the adsorbate but also on the chemical interactions between the active groups on the adsorbent and methylene blue, which is typical of the PSO kinetic model [45].

Table 4 Kinetic pseudo first order and pseudo second order model parameter values.

Adsorption isotherms

The Langmuir and Freundlich isotherm models were used to investigate MB adsorption behavior on the prepared adsorbents, as shown in Figure 8 and the corresponding fitting parameters are summarized in Table 5. According to the Langmuir model, Fe@S-14 demonstrates an adsorption capacity at 196.248 mg g⁻¹, which is substantially higher than that S-1. However, Fe@S-14 shows a relatively low Langmuir constant at 0.009 L mg⁻¹, suggesting weaker adsorption affinity within the concentration range investigated and indicating that q_max may represent an extrapolated value rather than a directly achieved saturation capacity. In contrast, Fe@S-2 and Fe@S-5 exhibit lower q_max values of 12.124 and 12.696 mg g⁻¹, respectively, accompanied by higher KL values of 0.083 and 0.054 L mg⁻¹. The Langmuir model provides the better fit for all samples based on the higher R² values, suggesting that adsorption is reasonably described by a predominantly monolayer-type uptake on an energetically similar set of sites within the measured concentration range [46].

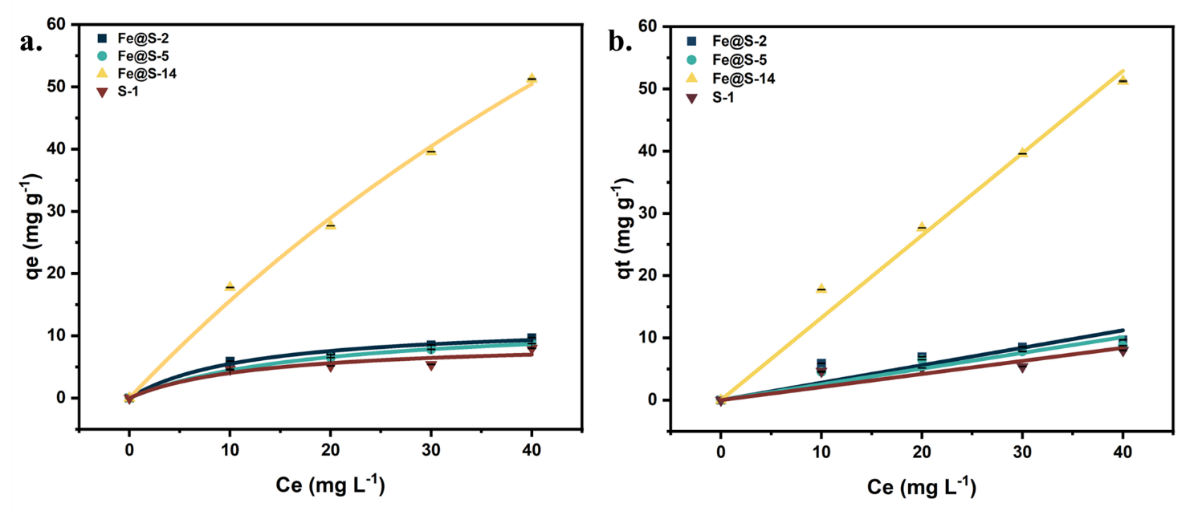

Figure 8 Plot of (a) Langmuir and (b) Freundlich isotherm models.

For Freundlich isotherm model, Fe@S-14 exhibits a K_f value of 1.124 and an n value of 0.849. An n value close to 1 generally indicates weak to moderate adsorption intensity and a less favorable adsorption process compared with systems showing higher n value. This behavior may be associated with surface heterogeneity and non-ideal site distribution arising from particle agglomeration and the presence of amorphous domains in the material [47]. In contrast, the Fe@S-2 shows a more balance adsorption behaviour, with n = 1.503 and K_f = 0.421, suggesting a relatively more favourable adsorption intensity than Fe@S-14 within the investigated concentration range. Meanwhile, the S-1 displays a n value of 1.561, however its adsorption capacity was relatively low, suggesting a limited number of adsorption-accessible sites on the silica surface.

Table 5 Parameter values ​​of the Langmuir and Freundlich isotherm model.

Tabel 6 Comparative adsorption performance of silica-based materials.

Table 6 compares the methylene blue (MB) adsorption performance of the present materials with representative zeolite/silica-based adsorbents reported in the literature. As shown, conventional silicalite-1 synthesized from TEOS exhibits an MB uptake of 16.45 mg g⁻¹ at an initial concentration of 50 mg L⁻¹ [16]. In contrast, the silicalite-1 prepared using geothermal sludge in this work shows lower uptake (7.9 mg g⁻¹ at 40 mg L⁻¹), which is reasonable because all-silica MFI materials are relatively hydrophobic and typically provide fewer strong adsorption interactions for cationic dyes without additional surface heterogeneity. Notably, Fe@S-14 demonstrates substantially higher adsorption (46 mg g⁻¹ at 40 mg L⁻¹), indicating that Fe modification and the associated structural disorder/partial amorphization can markedly enhance accessible adsorption sites and improve MB surface interactions compared with silicalite-1. Compared with other modified zeolitic adsorbents, NaX modified with SDS shows 13.48 mg g⁻¹ even at a much higher MB concentration (250 mg L⁻¹), while an Fe₃O₄/natural zeolite composite achieves 32.258 mg g⁻¹ at 30 mg L⁻¹ [48]. Beyond adsorption performance, the main advantage of this approach is sustainability due to silica-rich geothermal sludge is employed as a silica source, which reduces dependence on commercial TEOS and enables the upcycling of industrial waste into functional adsorbents.

Conclusions

Geothermal sludge was successfully converted into Fe doped silicalite-1 via hydrothermal synthesis, assisted by an acid leaching pretreatment to obtain a reactive silica precursor. Fe loading markedly influenced the crystallization behavior, low Fe loading preserved the MFI framework with only a slight reduction in relative crystallinity (Fe@S-2 = 95.81%), whereas excessive Fe loading decreased crystallinity (Fe@S-14 = 1.77%). Despite this structural trade-off, Fe@S-14 exhibited the highest surface area (174 m² g⁻¹) and delivered the best methylene blue adsorption performance with a value of 46 mg g⁻¹. Kinetic analysis showed that the adsorption data were best described by the pseudo-second order model and equilibrium behavior was reasonably captured by the Langmuir isotherm. Future work should focus on regeneration and multi-cycle stability testing and validating the adsorbent in real textile wastewater containing mixed dyes and competing ions. Overall, these findings highlight geothermal sludge as a sustainable silica feedstock and support the potential use of the resulting Fe-doped silicalite-1 as low-cost adsorbents for dye-contaminated wastewater, particularly relevant to textile effluent and circular-economy adoption at geothermal facilities

Acknowledgements

The authors greatly acknowledge Institut Teknologi Sepuluh Nopember (ITS) for funding this work under the scheme of Penelitian Keilmuan 2025 with contract number 1769/PKS/ITS/2025.

CRediT author statement

Ade Irma Rozafia: Writing-original draft, Visualization, Validation, Investigation. Bintang Prameswara: Writing - original draft, Investigation. Nur Karimah: Writing - original draft, Validation. Nor Farida: Formal analysis, Investigation. Wahyu Prasetyo Utomo: Writing - original draft, Validation, Visualization. Ratna Ediati: Writing - original draft, Formal analysis. Aishah Abdul Jalil: Methodology, Validation, Supervision. Djoko Hartanto: Writing - original draft, Validation, Methodology, Funding acquisition, Supervision.
