Trends Sci. 2025; 22(9): 10393

Streptococcus pyrogenic exotoxin A (SpeA) belongs to the family of released superantigen toxins. This research employs CRISPR-Cas9 technology to create effective disruption of the SpeA-TCR interaction. This method uses CRISPR-Cas9 genetics to obstruct virulence at its source thus efficiently halting toxin-receptor binding. Bacteremia is most frequently associated with streptococcal toxic shock. SpeA is a secreted polypeptide, that identifies antigens that escape the immune system by targeting the initial recognition stage in adaptive immunity [1,2]. One of the cellular receptors for this toxin is the human major histocompatibility complex (MHC), which includes the HLA-DR and HLA-DQ proteins expressed on certain cell lineages, as well as T-cell antigen receptors. SpeA transduces the antigen-specific signal to T cells, causing MHC-bound antigenic peptides to lose contact with antigen-collecting TCR site elements and, as a result, polyclonal activation. Toxic shock is caused by elevated levels of TNF-α [3,4].

Furthermore, The SpeA toxin binds to particular receptors on the surface of antigen-presenting cells (APCs), causing aberrant immune system activation. As a result, a significant number of T cells are activated to release huge amounts of cytokines, resulting in a severe immune response that might harm healthy tissue [5,6].

SpeA has been implicated in a range of S. pyogenes diseases, including invasive and non-invasive infections such as streptococcal toxic shock syndrome (STSS) and Kawasaki disease, necrotizing fasciitis, tonsillitis, and post-streptococcal autoimmune diseases such as acute rheumatic fever [7,8].

The present strategies for S. pyogenes infection treatment using antimicrobials and immunotherapeutics do not specifically address bacterial virulence mechanisms. The current treatment failures validate the necessity of introducing new strategies such as CRISPR-Cas9 gene editing.

Prokaryotic CRISPR-Cas adaptive immune systems retain memory of earlier infections and, upon reinfection, use RNA-guided endonucleases to silence antibacterial target genes via plasmid transfer. The CRISPR cluster, which appears in nearly 90 % of bacterial genomes, is the defining feature of these systems [9,10]. This short gRNA region is made up of identical repetitions of distinct sequences separated by unique spacers. CRISPR-Cas functions as an adaptive immune system, with the CRISPR array serving as an archive of previous infections by collecting bacteriophage-derived spacers that immunize against future infections [11,12].

We predicted and employed the CRISPR-Cas9 system because SpeA functions as an essential virulence factor to block its connection with TCR receptors. A short guide RNA (gRNA) was predicted and associated with the Cas9 enzyme. The binding of this antigen to host cell receptors may be altered and suppressed using gRNA SpeA-Cas9, allowing the immune system to play a role in eradicating S. pyogenes. In this work, the physicochemical properties of gRNA SpeA-Cas9 were also investigated to determine the influence of the target sequence on SpeA binding to TCR receptors. The pathogenicity mechanism of S. pyogenes depends on the SpeA-TCR interaction because it activates multiple T-cells which leads to an overproduction of cytokines that causes toxic shock syndrome. Researchers get an advantage by targeting SpeA using CRISPR technologies, as this strategy directly silences the virulence gene, halting the harmful sequence.

Materials and methods

Extract S. pyogenes genome, SpeA, buildup gRNA and folding

The gRNA design tools led by CRISPRDB work best with human and mouse genome sequences yet their predictive frameworks were validated through bacterial genomic analysis. The whole genome of S. pyogenes A20 strain (NC_018936) was extracted from NCBI. The target gene SpeA with ID QJC39715 was selected from NCBI with a length of 634 nt. FUpred alongside CRISPRDB together with RNAfold along with SimRNA 2.0 and AMUSER 1.0 were used as high-performing design tools for gRNA prediction and tertiary structure modeling and secondary structure analysis and domain boundary detection as well as primer design optimization. The chosen high-performing gRNA design techniques showed excellence in predicting RNA folding and binding affinity and domain distribution needed for validating gRNA SpeA-Cas9. This application includes gRNAs that were previously produced in human and mouse species. The GC content was determined to be more than 50 %. Finally, the gRNA was fed into the Cas9 (MH683611). To anticipate RNA folding and produce the 3D structure of the gRNA, the SimRNA 2.0 and RNAfold servers were used. RNAfold helps to secondary structure and sets the lowest free energy. The prediction was made using a loop-based energy model and a dynamic programming method that broke down the molecule into outer loops and bases. According to the loop-based energy model, the secondary structure’s free energy is the total of the free energies that each of the expected loops contributes. With remarkable performance, SimRNA 2.0 folds and resolves small hairpin sequences to do both simulations and 3D prediction.

Genetic cloning with pCRII-TOPO

The CRISPR-Cas9 system was delivered using a plasmid-based strategy, allowing transient expression of gRNA SpeA-Cas9 for precise editing. The pCRII-TOPO plasmid received gRNA SpeA by utilizing Geneious Prime (version 2023.2.0) for genetic cloning procedures. The tool enabled DNA fragment insertion through TOPO cloning without requiring any ligation enzymes to execute the process. The process shortened the production line for gRNA SpeA-Cas9 constructs which enabled experimental verification. TOPO cloning is a 1-step procedure that uses topoisomerase 1 as the only enzyme to insert DNA fragments into linear vectors. Transferring nucleic acids by TOPO cloning eliminates the need for ligation enzymes. Cas9 was used to select the plasmid pCRII-TOPO for gRNA loading. A marker for ampicillin and kanamycin antibiotic resistance is included in this plasmid. The AMUSER platform enabled design of the gRNA SpeA-Cas9 primers which used the following sequences: Forward (5'-ACTCGCTGATCTGCTCGATG-3') and Reverse (5'-TCCGCAAGGACTTCCAGTTC-3'). The PCR reaction had a 59 °C annealing temperature and executed 30 cycles and required a 10-minute 72 °C final extension period to achieve specific amplification products.

Domain analysis

FUpred is based on a strategy for forecasting domain distribution in a contact map. This method employs an iterative strategy to determine domain boundaries throughout the whole protein chain based on the projected contact map and secondary structure data. A benchmark study shows that FUpred can detect disconnected domain borders and is more predictive of domain boundaries than thread-based and machine-learning-based techniques. The TopDomain server was used to estimate domain boundary scores for gRNA SpeA-Cas9.

Chaos Game Representation (CGR) test

The researchers applied CGR methodology for analyzing both unique sequences and recurring motifs in S. pyogenes genomic data. To find out the portion of the target sequence on the whole S. pyogenes A20 genome, the full genome was mapped using CGR. The biochemical and biophysical properties of the complete gRNA SpeA-Cas9 were evaluated to observe the structural alterations utilizing the XtalPred server through a heterogeneous database and the crystallization probability.

Molecular docking performance

Docking parameters employed in the study included improved binding site predictions and rigid-body docking. A binding site optimization enabled the CHARMM force field to undertake energy minimization, resulting in binding affinity and ligand RMSD values. The TCR (PDB:1H5B) model was updated to mimic molecular docking with SpeA (PDB: 1UUP) in the presence of a gRNA sequence. The HDOCK server (version 1.5) was used for molecular docking, and the gRNA was inserted into the docking site using PyMol.

Results and discussion

Streptococcal exotoxins (Spe) are a crucial component of S. pyogenes pathogenicity. They are classified as superantigens because they may interact with T-cell receptor β chain and major histocompatibility complex components without being processed by antigen-presenting cells first. Many T lymphocytes are activated as a result of this contact. There are eleven known different Spe superantigens, but SpeA is the most significant [13,14]. Epidemiologically, SpeC is less well defined than SpeA, owing to SpeA’s stronger relationship with invasive illness and SpeC’s lower immunogenicity. SpeC is expected to exist as a dimer, despite the MHC binding site commonly found with other Spe [15].

The researchers employed a Streptococcus M1 strain in which the SpeA gene was deactivated using a SpeA defective strain. The virulence of the bacteria infecting the mice was not lowered, indicating that the mice are very resistant to Spes’ fatal effects. Furthermore, the strain with the inactivated SpeA gene exhibited nearly equal mitotic activity to the wild-type strain [16,17].

A previous study showed SpeA’s crucial involvement in the etiology of nasopharyngeal infection and proved the effectiveness of anti-SpeA antibodies in preventing nasopharyngeal infection. The study found that humoral immunity against some streptococcal SAgs can protect against streptococcal nasopharyngeal infection [18,19].

A total of 35 gRNAs were predicted to exist inside the target SpeA. Table 1 lists the top ten with the highest potency scores. The thermodynamic group of gRNA has a free energy of −0.80 kcal/mol and a frequency of the minimum free energy (MFE) structure of 27.50 %. The best gRNA in the group, (AGGAGTGCATGTATCTACGGAGG), has the highest potency score of 85.9 and is the target sequence carried by Cas9. The tertiary structure of gRNA was predicted using SimRNA, while RNAfold was used to determine the folding, thermodynamic ensemble, and positional entropy of the secondary structure, Figure 1. The ensemble diversity measures 2.96. The MFE predicted by RNAfold for gRNA SpeA amounted to −27.5 kcal/mol whereas SimRNA generated a tertiary structure with 3.2 Å RMSD relative to the 2D prediction.

Table 1 The top 10 gRNAs have the greatest potency scores.

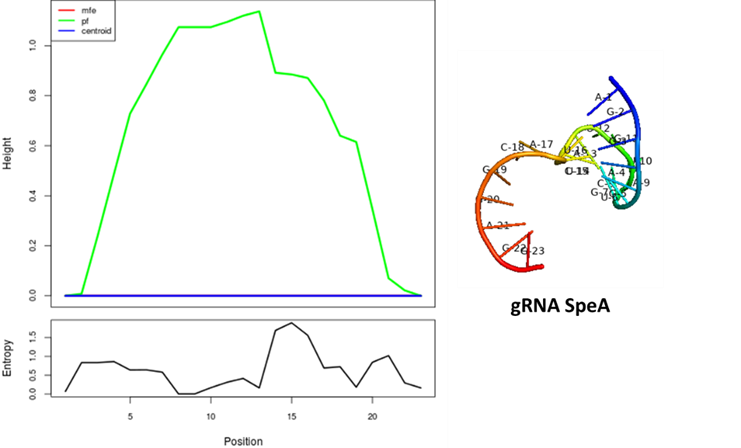

Figure 1 Mountain plot showing a 2D representation of the MFE structure, thermodynamic ensemble of gRNA SpeA structures, and centroid structure. The second picture depicts a 3D construction.

The primers for gRNA SpeA-Cas9 used in PCR were extracted with a GC content of 59.97 % using Primer-BLAST from NCBI, Table 2. gRNA Spea-Cas9 was imported into pCRII-TOPO via Geneious Prime to obtain the clone’s complete sequence (8,142). The computer clone of gRNA Spea-Cas9 was inserted in the TOPO site, resulting in the gRNA SpeA-pCRII-TOPO clone (Figure 2). Restriction enzymes cut DNA strands based on the sequences they match. Figure 3(A) and Table 3 demonstrate that several enzymes can cut the strand at certain points based on the complementary. EcoRI was identified as the most appropriate enzyme for containing the transfer area, as shown in Figure 3(B). E. coli BL21 is ideal for cloning transformation. Verification of successful cloning occurred by simulation gel analysis and EcoRI restriction mapping and sequencing gRNA insert sequence.

Table 2 Description primers for cloning of gRNA SpeA-Cas9.

Table 3 The optimal restriction enzymes, recognition sequences, cut sites, and fragment lengths were employed to cut and ligate the gRNA SpeA-Cas9 from pCRII-TOPO.

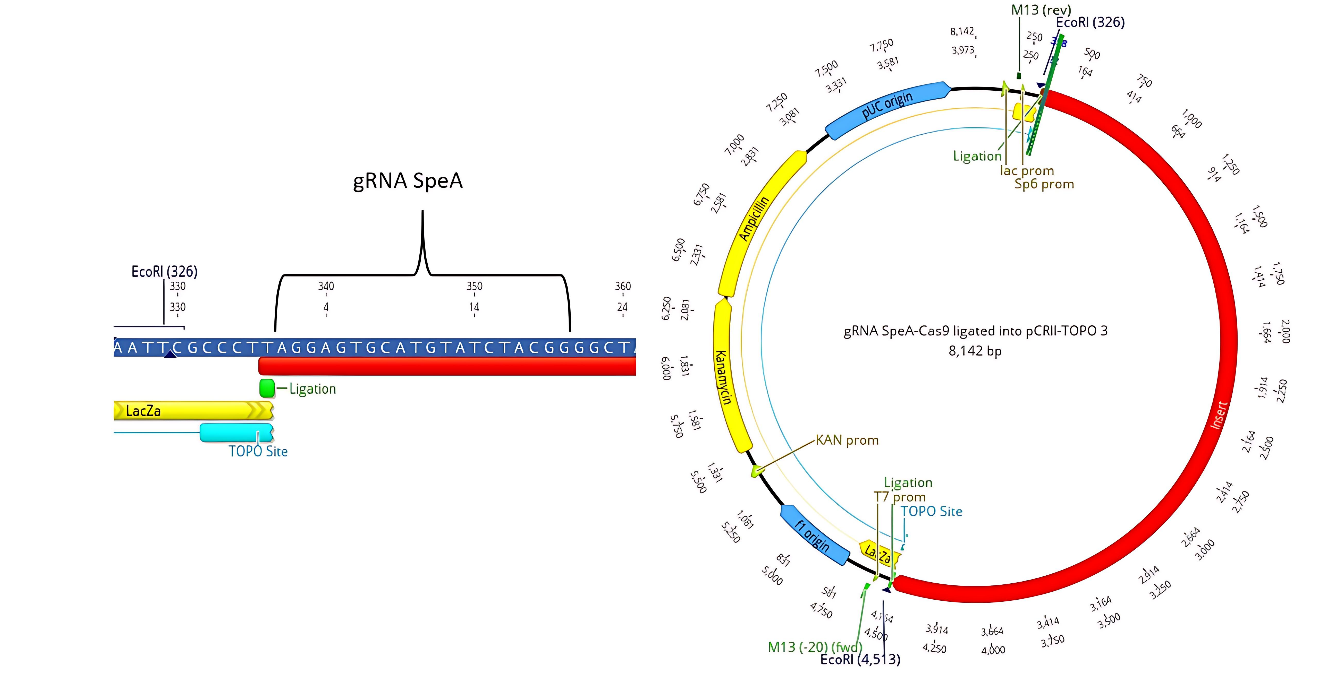

Figure 2 The data confirms how gRNA SpeA gets incorporated structurally into the pCRII-TOPO plasmid. The in-silico gel simulation data verifies the cloning success due to visual confirmation in the figures.

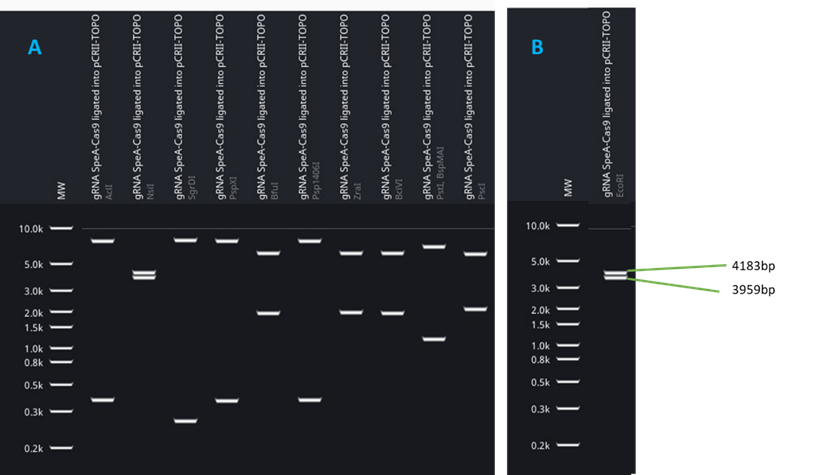

Figure 3 Prediction of gel electrophoresis result. A: Types of restriction enzymes with distinct restriction areas in the clone sequence. B: EcoRI, the restriction enzyme, contains 2 distinct restriction areas. The necessary piece of the gRNA SepA-Cas9 is 4183. MW: Molecular weight (DNA ladder).

The estimated domain boundaries of gRNA SpeA-Cas9 are 17 domains scattered across the map in Figure 4(A(. The FU score is calculated using an iterative process that subtracts the difference between the multi-domain distributions associated with the single domain from the protein contact map and previously acquired secondary structure information. FU-score2c and FU-score2d values are based on the original inputs and their relationships within the damaged protein domains. According to Figure 4(B), the lowest FU score occurs between residues 300 - 350 and 840 - 860. The heat map distribution of gRNA SpeA-Cas9 is based on the contact map’s border domains, which are depicted in brown in Figure 4(C). The top border domains, location, and peak scores were predicted using the TopDomain server, Figure 5.

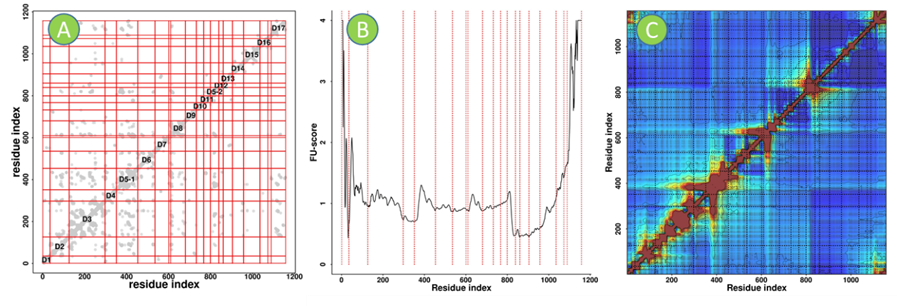

Figure 4 A Distribution of border 17 domains in the contact map. B: FUscore curve for total residues of gRNA SepA-Cas9. C: Heat map for gRNA SepA-Cas9.

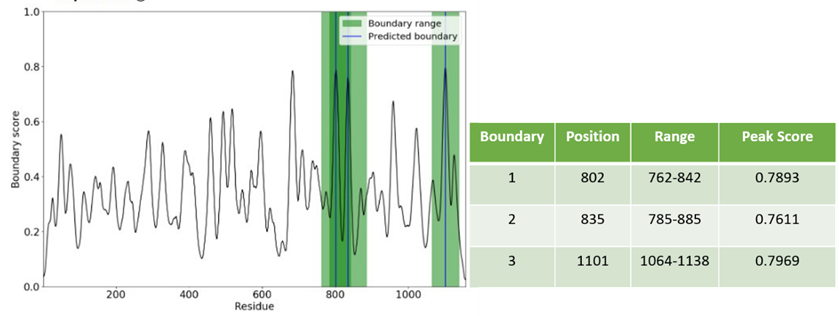

Figure 5 The 3 top boundary domains of gRNA SepA-Cas9 record the highest score.

Computational simulations of CRISPR-Cas9 activity validated results which were followed by specific computational score analysis. The CRISPR-Cas9 gene editing technique has transformed the regulation of gene expression and gene silencing. In this work, the S. pyogenes superantigen’s target was gRNA. The procedure of reducing this toxin’s attachment to cells ensures that the bacteria do not harm the host cells, and so this strategy is considered one of the innovative therapeutic options.

The major component of gRNA SpeA was located using the CGR map of the whole genome of the S. pyogenes A20 strain, which had 1,837,281 bp. The nitrogenous bases in this map are arranged on 4 axes based on their coordinate position (x,y). Each nucleotide is drawn on the map based on its position. The greatest number of bases that may be calculated from the nucleotides is 8 for each hit or point on the map. In this investigation, we determined that a point from the site of the target sequence (ACGGAGG) inside gRNA SepA was identified in the map picture within the bacteria’s whole genome, as shown in Figure 6.

Figure 6 Graphical picture of the S. pyogenes A20 whole genome shows the partial sequence (ACGGAGG) of gRNA SepA.

Table 4 presents the top 6 high-energy docking models, as well as their confidence scores and RMSD for SpeA-TCR. The gRNA was then transferred into the complex to track the interaction area. Figure 7 displays the location of gRNA SpeA inside the docking complex for each model. Binding affinity analyses revealed a significant reduction in SpeA-TCR interaction (mean reduction: 70, 95 CI: 65 - 75 %, p-value < 0.01). These findings confirm the specificity and efficacy of gRNA SpeA-Cas9. Model 2 is appropriate for putting gRNA SpeA between docked proteins, however in the other models, gRNA SpeA’s location is outside of the interaction docking, Figure 7.

Table 4 Summary of the top 6 molecular docking models (SpeA-TCR).

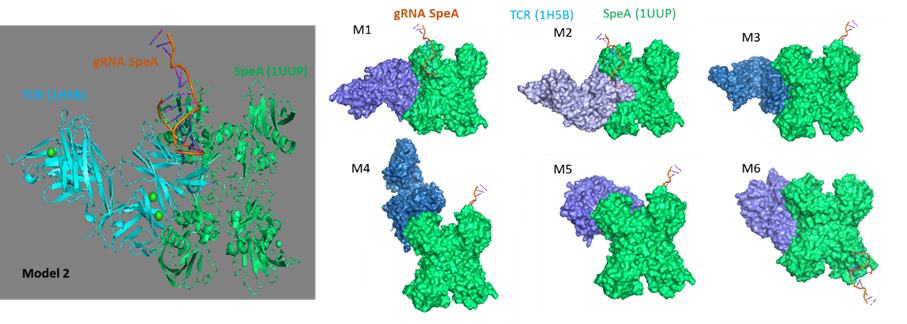

Figure 7 Molecular docking of SpeA-TCR uploaded with gRNA SpeA. Left image: Cartoon view of model 2. Right images: Surface view of the top 6 models of SpeA-TCR-gRNA SpeA.

Our findings showed that the action of gRNA can alter the degree of molecular docking between SpeA and TCR receptors. Although the projected molecular docking models result in a change in the location of the contact, it is obvious that the usage of gRNA affects the value of this interaction, making it harder for the toxin to enter the cell as a result of this modification.

Determining the structure of a gRNA is critical for understanding structure-function correlations and developing diagnostics for target proteins. Furthermore, decreasing the free energy while calculating the gRNA secondary structure can aid in the development of a model for comparative sequence analysis or the preparation of candidate structures for testing via site-directed mutations. This is already the case for predicting secondary and tertiary nucleic acid structures. However, limits caused by chemical modification can somewhat compensate for a lack of understanding of the processes that influence RNA structure. To demonstrate this, in vivo investigations overcome the challenge of identifying in vitro settings that resemble the native structure, which is a benefit of chemical modification over nuclease mapping [20,21].

A prior study found that the mutations K16N, C90S, and S195A in SpeA did not lower the toxin’s lethality when compared to the wild type. However, the mutations C87S and C98S lowered lymphocytes’ capacity to generate antigens as well as the toxin’s lethality. Because the mutations did not lessen the toxin’s lethality, we feel it is critical to use the CRIPSR-Cas system to inhibit the toxin’s gene expression and use it in the laboratory.

The therapeutic strategy establishes a new tactic to fight infection through SpeA-induced immune hyperactivation reduction. Future investigations need to study how this technique can combat various virulence factors of S. pyogenes to establish new therapeutic strategies against bacterial infections.

Conclusions

Decreased binding of SpeA to host cell receptors results in S. pyogenes losing its ability to cause infection, as well as its virulence. This gRNA-based approach offers a viable avenue for novel therapeutic alternatives. gRNA has the potential to alter the degree of molecular interaction between SpeA and TCR receptors. This study’s value increases for understanding S. pyogenes pathogenicity as well as developing innovative treatment approaches after minor adjustments clarify the research approach and enhance statistical methods.

Acknowledgements

The authors send a thankful letter to the University of Mosul for documenting this work.

Declaration of Generative AI in Scientific Writing

The authors ensure that there were no generative AI tools (e.g. ChatGPT, QuillBot, Grammarly, etc.).The present paper was created without the help of any AI environments, such as ChatGPT, QuillBot, or Grammarly. Manual creation of the graphical abstract was made with Canvas design tools, and just on the basis of scientific content. No element of research, analysis, or writing was supported with the help of AIs. The authors accept full responsibility in regards to integrity, originality and conclusions of this work.

CRediT Author Statement

Rana Al-Sabawi: Conceptualization, Methodology, Investigation, Data curation, Validation, Visualization, and Writing – original draft.

Zeyad Al-Rrassam: Formal analysis, Data curation, Software, Validation, and Visualization.

Mahmood Altobje: Supervision, Project administration, Resources, Correspondence, Funding acquisition, and Writing – review & editing.
